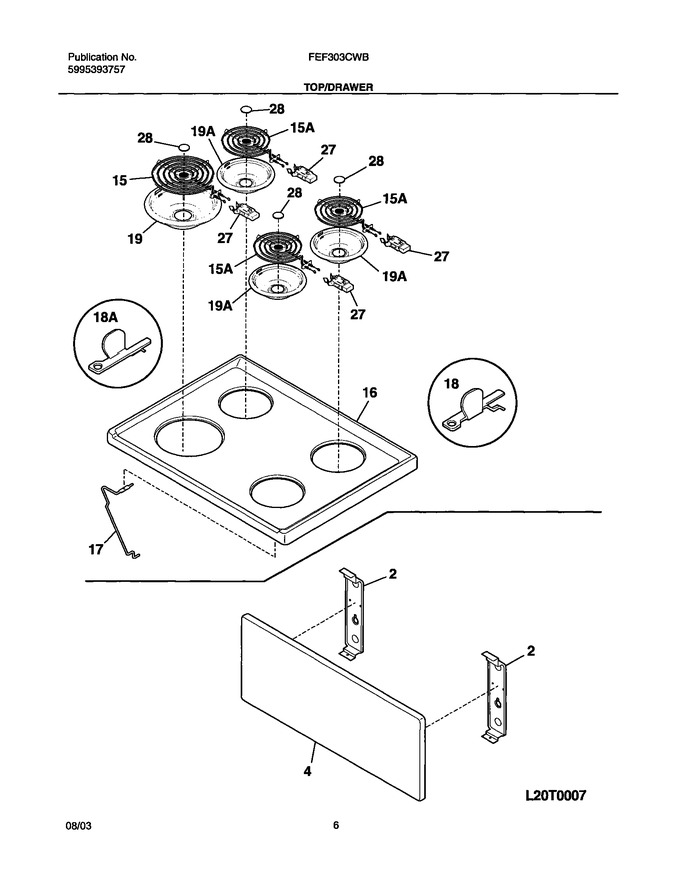

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	316211900		Bracket,dummy ,drawer Front		Appelez-nous	-
4	316231216		Panel,dummy ,white ,drawer Front		Appelez-nous	-
16	316245406		Main Top,white				$ 282.29
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
18A	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
F15	3051450		Element,surface ,8`` Large		Appelez-nous	-
F15A	3051449		Element,surface ,6`` Small		Appelez-nous	-
F19	316048413		Pan-surface Element,chrome ,large/8 Inch,(2)			Immediately	$ 9.85
F19A	316048414		Pan-surface Element,chrome ,small/6 Inch,(2)			Immediately	$ 16.11
F27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	5303290291		Wiring Harness,surface Element		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
