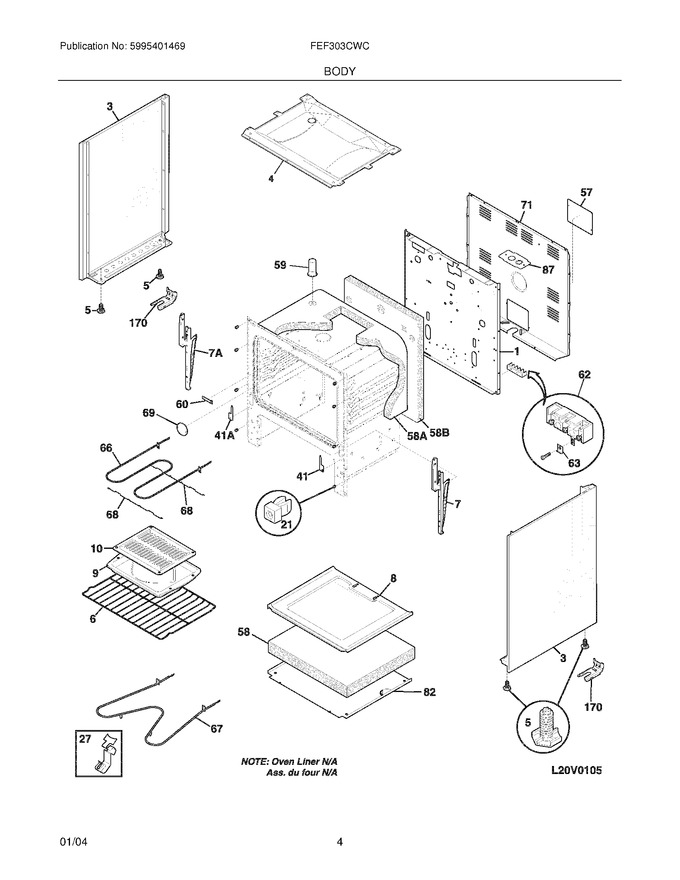

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316080805		Panel,main Back ,dipped ,black ,short		Appelez-nous	-
3	316216402		Panel,bodyside ,white ,rh		Appelez-nous	-
3	316216403		Panel,bodyside ,white ,lh		Appelez-nous	-
4	316210101		Burner Box		Appelez-nous	-
5	316129200		Screw,leveling ,plastic ,with Stop				$ 10.92
6	316067902		Rack,oven			Immediately	$ 103.10
7	316566202		Hinge,oven Door ,rh   (Replaces: 316216502)				$ 73.96
8	3203540		Panel-oven Bottom		Appelez-nous	-
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
21	3014099		Spacer,bodyside				$ 3.62
27	5303284616		Clip,thermo Bulb Mtg				$ 9.86
41	316233400		Cover,hinge Cutout ,rh				$ 67.99
57	316081100		Cover,access		Appelez-nous	-
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
59	316073601		Tube, Oven Vent		Appelez-nous	-
60	316239100		Cover,oven Front		Appelez-nous	-
62	5303935238		Terminal Block Kit,w/ground Plate				$ 101.35
63	316278800		Plate,grounding Strap		Appelez-nous	-
66	316203200		Element-broil			Immediately	$ 164.45
67	316075103		Element-bake			Immediately	$ 42.36
68	316203400		Support,broil Element				$ 70.88
69	3051218		Plate,oven Light		Appelez-nous	-
71	316015812		Shield,rear Wall		Appelez-nous	-
82	5303289913		Shield,insulation		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
170	316112500		Template,anti-tip				$ 3.55
170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
170	316112005		Anti-tip Kit,w/bracket,screw   (Replaces: 5303935180)			Immediately	$ 18.91
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
41A	316233500		Cover-hinge,cutout ,lh				$ 16.96
58A	316047707		Insulation, 1`` ,oven Wrapper				$ 150.92
58B	316054202		Insulation, 1`` ,oven Back				$ 76.59
7A	316216503		Hinge,oven Door ,lh		Appelez-nous	-
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316021131		Screw,bodyside ,8-18 X 11/16 ,white		Appelez-nous	-
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	316248900		Spacer,shield ,rear Wall		Appelez-nous	-
NI	316253138		Wiring Harness,main		Appelez-nous	-
NI	3051367		Clip-wire		Appelez-nous	-
NI	3203550		Plug,button ,oven Bottom			Immediately	$ 15.22
NI	316073400		Plate,weight ,(3)		Appelez-nous	-
NI	316246400		Plug,button ,oven Probe		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	5303321321		Paint,touch-up ,black   (Replaces: 5303305345)			Immediately	$ 21.97
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
