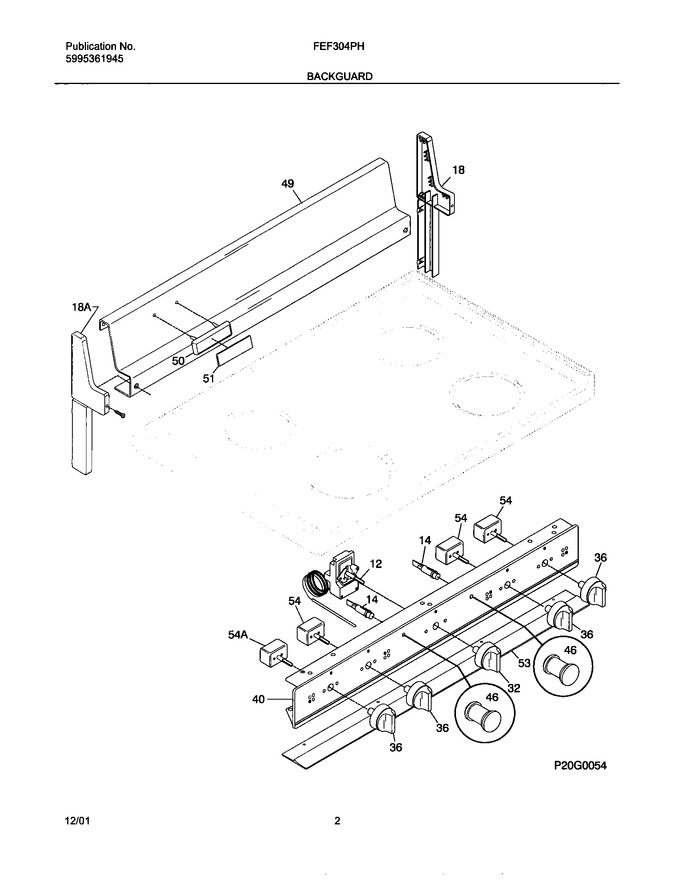

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	316022503		Light/lamp,indicator ,surface ,250 V			Immediately	$ 70.16
18	3202802		End Cap,black ,rh		Appelez-nous	-
32	316102302		Knob-thermostat,black		Appelez-nous	-
36	316102307		Knob,control ,black		Appelez-nous	-
40	316086827		Panel-manifold, Black		Appelez-nous	-
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
49	316073502		Panel-backguard, Almond		Appelez-nous	-
50	316096900		Bezel,nameplate ,black				$ 15.38
51	316095420		Nameplate,frigidaire ,black		Appelez-nous	-
53	3204623		Extrusion-heat Shield		Appelez-nous	-
18A	3202801		End Cap,black ,lh		Appelez-nous	-
F12	316114600		Thermostat		Appelez-nous	-
F54	5303051540		Switch,element ,6``		Appelez-nous	-
F54A	5301313767		Switch,element ,8``		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316001554		Harness-main		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
