Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10203876 Dishrack, Upper Appelez-nous -
2 99002621 Rail, Inner Slide Special Order $ 56.82

3 99002669 Clip, Upper Wash Manifold (front) Special Order $ 5.84

4 99002945 Clip, Upper Wash Manifold (back) Special Order $ 21.24

5 99002679 Wash Manifold Assy, (upper) Appelez-nous -
6 99002624 Arm, Wash (upper) Special Order $ 32.72

7 W10203921 Dishrack, Lower Appelez-nous -
8 W10180776 Wheel Assembly Special Order $ 9.77

9 99003429 Basket, Silverware Appelez-nous -
10 WPW10261227 Stop, Rail   (Replaces: W10261227) In-Stock Immediately $ 6.93


    View Diagram in Separate Window     Print Icon   Print Part List

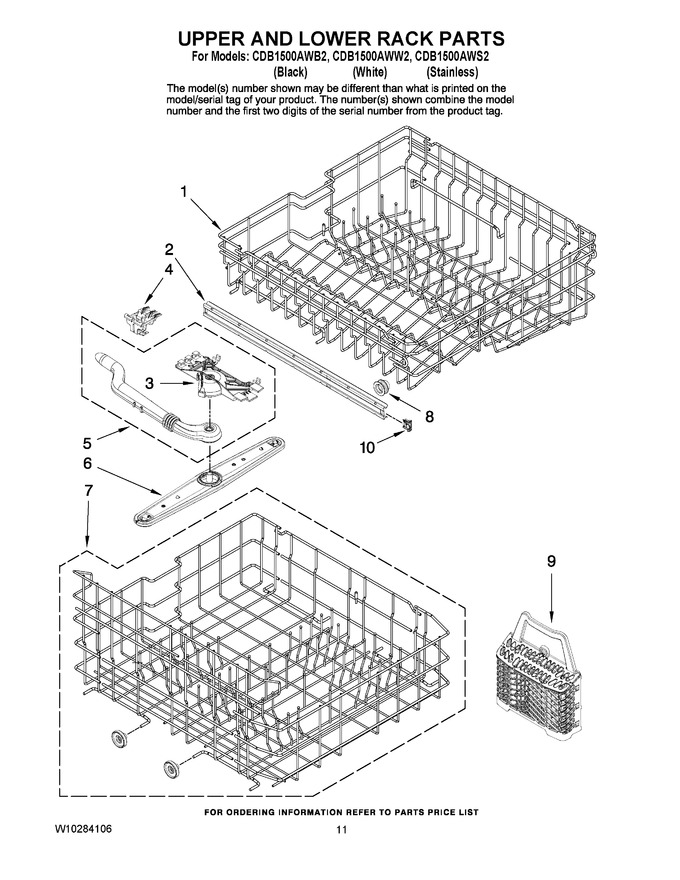

Diagram for CDB1500AWB2
