Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10237911 Harness, Wiring Special Order $ 118.22

2 99002590 Bezel, Door Vent Special Order $ 72.78

3 99002186 Seal, Door Vent Special Order $ 7.89

4 99002992 Cap, Rinse Aid Special Order $ 19.99

5 99003321 Dispenser, Rinse Aid Appelez-nous -
6 W10190890 Housing, Vent Assy Special Order $ 84.95

7 Y912620 Screw, Door Special Order $ 5.48

8 99003424 Inner Door W/ Damper Appelez-nous -
9 99003316 Bracket, Dispenser Appelez-nous -
10 WP33002917 Screw   (Replaces: 912615) In-Stock Immediately $ 6.90


    View Diagram in Separate Window     Print Icon   Print Part List

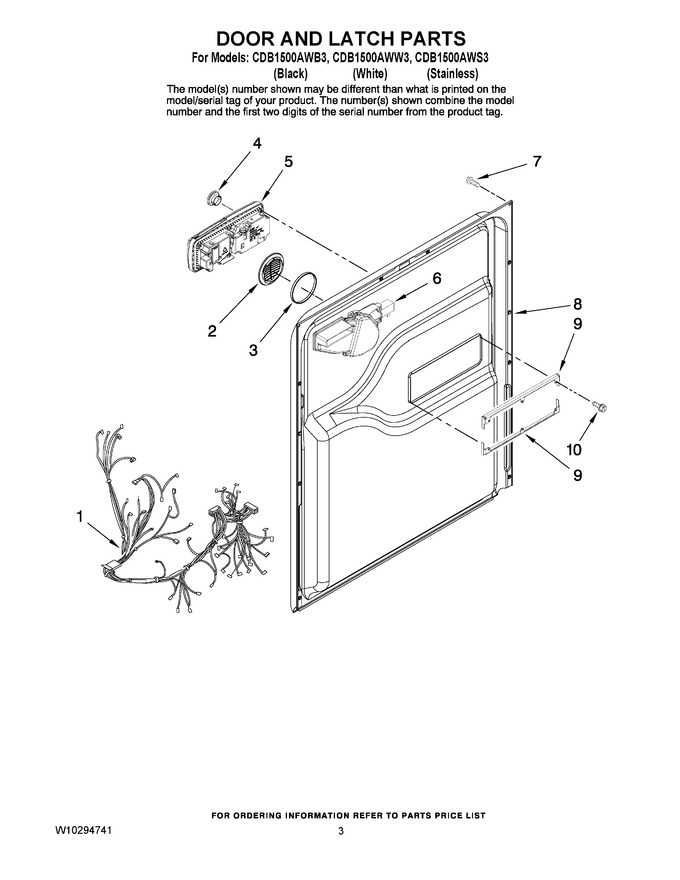

Diagram for CDB1500AWB3
