SELECT A DIAGRAM

01 - Cover

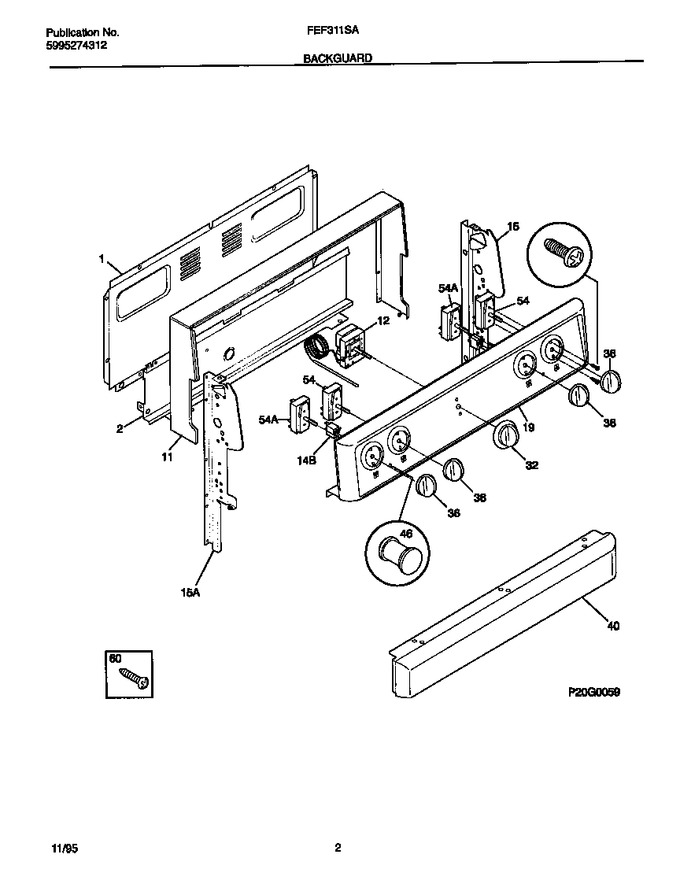

02 - Backguard


03 - Body


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316061841		Trim-wrapper, Black		Appelez-nous	-
12	316032401		Thermostat-oven		Appelez-nous	-
14	316022503		Light-lamp, Indicator, 250 V			Immediately	$ 70.16
15	316023110		Support-backguard, Rh		Appelez-nous	-
15	316023111		Support-backguard, Lh		Appelez-nous	-
19	316024407		Panel-control, Metal		Appelez-nous	-
32	316054900		Knob-thermostat		Appelez-nous	-
36	316025100		Knob-control, Infinite Sw		Appelez-nous	-
40	316025800		Panel-manifold		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
54	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*43200	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*43201	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
*43202	5303292005		Screw-switch Mtg, 8-32 X 5/32, (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
