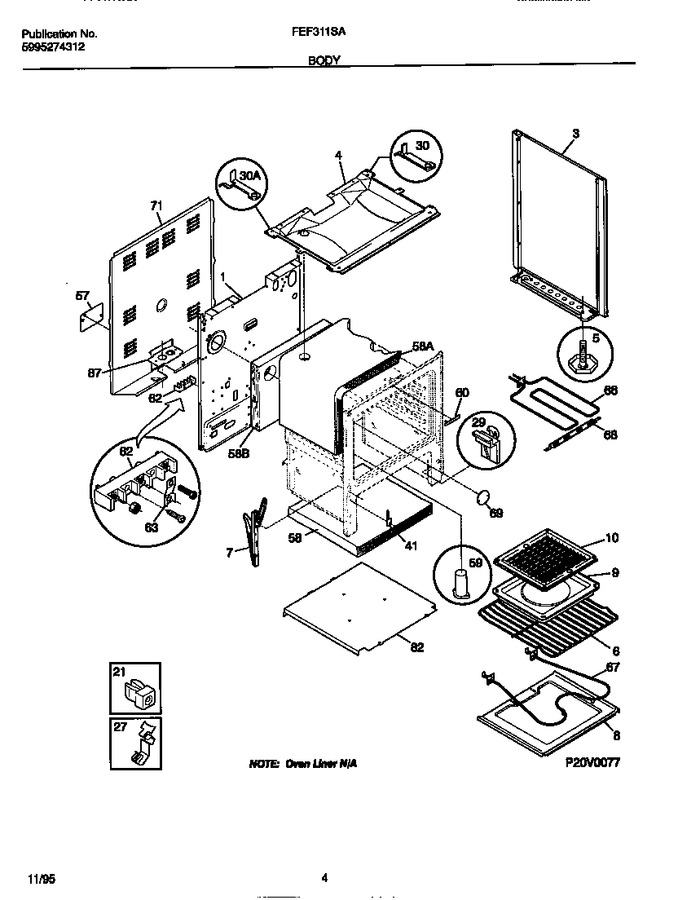

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Backguard
03 - Body
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316011501 | Drawer-utility |
|
- | |||||
| 1 | 316080801 | Back-main |
|
- | |||||
| 2 | 3131975 | Shield-panel |
|
- | |||||
| 3 | 316081005 | Panel-bodyside, White, Lh (not Illustrated) |
|
- | |||||
| 3 | 316081004 | Panel, Bodyside, White, Rh |
|
- | |||||
| 4 | 316056205 | Panel-drawer-white |
|
- | |||||
| 4 | 08067785 | Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated) |
|
- | |||||
| 4 | 5303271756 | Burner Box |
|
- | |||||
| 6 | 5304531722 | Rack-oven (Replaces: 316067901) |
|
Immediately | $ 51.05 | ||||
| 7 | 3051163 | Glide,drawer ,rear |
|
Immediately | $ 19.41 | ||||
| 7 | 316007001 | Hinge,oven Door ,(2) |
|
$ 234.55 | |||||
| 8 | 3203540 | Panel-oven Bottom |
|
- | |||||
| 9 | 316073800 | Pan-broiler |
|
- | |||||
| 10 | 3205234 | Insert, Broiler Pan |
|
- | |||||
| 15 | 5308011964 | Element-surface, Large/8 Inch |
|
$ 209.08 | |||||
| 15 | 5303015210 | Element-surface, Small/6 Inch |
|
- | |||||
| 16 | 316202388 | Main Top, White (Replaces: 316020907) |
|
$ 407.24 | |||||
| 17 | 316057601 | Rod-maintop Support |
|
$ 64.49 | |||||
| 18 | 5303273063 | Hinge-main Top (lh) |
|
$ 48.41 | |||||
| 18 | 5303273062 | Hinge-main Top (rh) |
|
- | |||||
| 19 | A316222301 | Pan-surface Element, Large/8 Inch (Replaces: 5303935053) |
|
Immediately | $ 12.53 | ||||
| 19 | A316222201 | Pan-surface Element, Small/6 Inch (Replaces: 5303935055) |
|
Immediately | $ 14.64 | ||||
| 21 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 27 | 5303935058 | Terminal Block Kit,surface Element (Replaces: 5303912666) |
|
Immediately | $ 13.81 | ||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 28 | 5303017715 | Medallion,1 1/2``dia ,black ,surface Element |
|
$ 64.46 | |||||
| 29 | 3051162 | Glide-drawer, Front |
|
Immediately | $ 8.22 | ||||
| 30 | 5303283574 | Bracket-hinge, Main Top Rh |
|
- | |||||
| 30 | 5303283575 | Bracket-hinge, Main Top, Lh |
|
- | |||||
| 39 | 316026100 | Handle-drawer, Black |
|
- | |||||
| 41 | 3131570 | Cover Hinge Cutout |
|
$ 7.35 | |||||
| 57 | 316081101 | Cover-access |
|
- | |||||
| 58 | 316047707 | Insulation,oven Wrapper |
|
$ 150.92 | |||||
| 58 | 3200847 | Insulation, Oven Bottom |
|
- | |||||
| 58 | 316054202 | Insulation,oven Back |
|
$ 76.59 | |||||
| 59 | 316073601 | Tube, Oven Vent |
|
- | |||||
| 60 | 5303015372 | Cover-oven Front |
|
- | |||||
| 60 | 5303281379 | Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2 |
|
- | |||||
| 62 | 5303935061 | Terminal Block |
|
- | |||||
| 63 | 5301145190 | Plate=ground Strap |
|
- | |||||
| 66 | 5303051140 | Element-broil |
|
$ 202.71 | |||||
| 67 | 316075103 | Element-bake (Replaces: 316075102) |
|
Immediately | $ 42.36 | ||||
| 68 | 316075300 | Support-element |
|
- | |||||
| 69 | 3051218 | Plate,oven Light |
|
- | |||||
| 71 | 316015805 | Shield-rear Wall |
|
- | |||||
| 82 | 3200825 | Shield, Oven Bottom |
|
- | |||||
| 87 | 316081201 | Bracket-cable Mtg |
|
- | |||||
| *43203 | 3203550 | Plug-button |
|
Immediately | $ 15.22 | ||||
| *43204 | 5303051099 | Nut, Hex, 10-32 |
|
- | |||||
| *43205 | 5303281584 | Screw, Truss Head, 8-18 X 1/2 |
|
- | |||||
| *43206 | 316001188 | Harness-wiring, Main |
|
- | |||||
| *43207 | 316001725 | Harness-wiring, Surface Element |
|
- | |||||
| *43208 | 5303281584 | Screw, Truss Head, 8-18 X 1/2 |
|
- | |||||
| *43209 | 5303288567 | Screw, 8-18 X 3/8, (4) |
|
- | |||||
| *43210 | 5303288574 | Screw, Truss Head, 8-10 X 3/8 |
|
- | |||||
| 5A | 5303203397 | Screw-leveling |
|
$ 14.49 | |||||
| 5B | 3934058 | Anti, Tip Kit (not-illustrated) |
|
$ 98.75 | |||||
| 5C | 316116000 | Screw, Anti, Tip, (4) (not-illustrated) (Replaces: 316078600) |
|
$ 12.89 | |||||
| 5D | 5303288460 | Nut, T,type, Leveling Screw (not Illustrated) |
|
$ 27.14 |
