SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

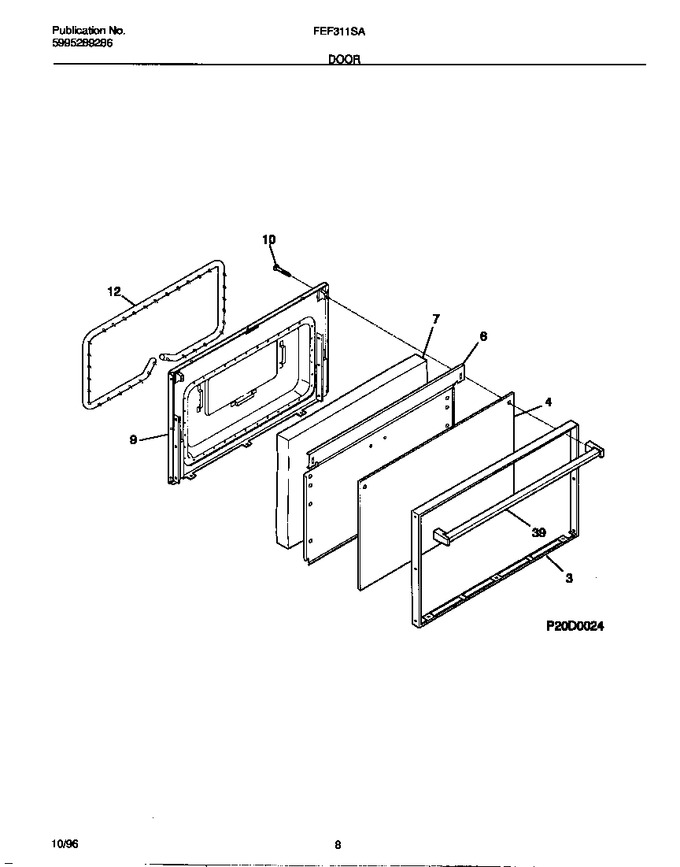

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim-oven Door		Appelez-nous	-
4	316089001		Glass-oven Door, Black, Outer		Appelez-nous	-
6	316091402		Shield-wool		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
9	316066611		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
39	5304529996		Handle-door, Black, Oven   (Replaces: 316091114)				$ 156.11
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
*31209	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*31210	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*31211	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*31212	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*31213	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46

    View Diagram in Separate Window       Print Part List
