SELECT A DIAGRAM

01 - Control Panel


02 - Door


03 - Pump & Motor


04 - Soap Dispenser


05 - Track & Rack Assembly


06 - Tub


07 - Wiring Information

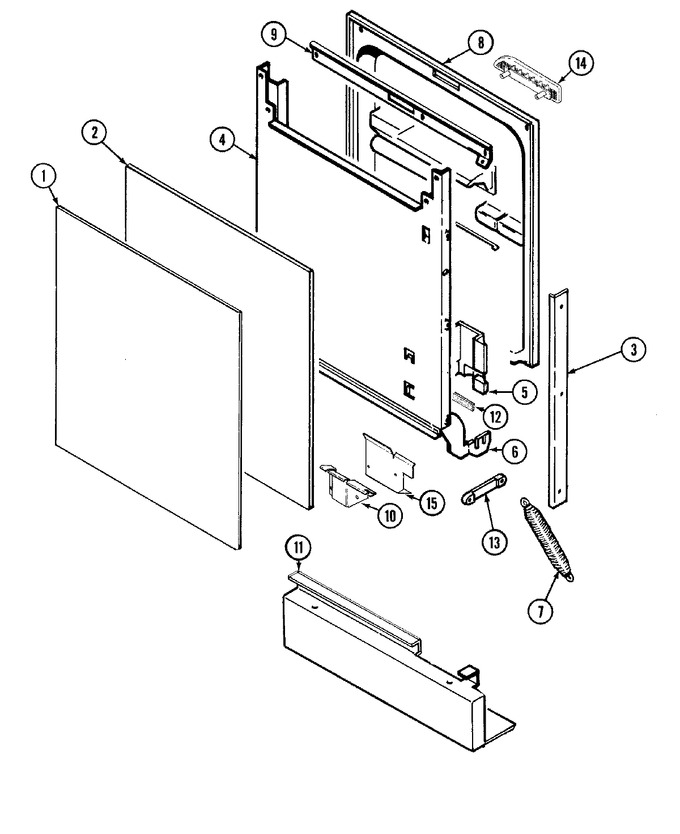

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002248		Insert, Front Panel (wht/bsq)	10	Appelez-nous	-
2	Y913184		Filler, Front Panel	10	Appelez-nous	-
3	99001351		Trim, Side (wht)	10			$ 66.87
3	Y912955		Trim, Bottom (wht)	10	Appelez-nous	-
3	912619		Screw, Steel	10			$ 11.60
3	912024		Rivet	10	Appelez-nous	-
4	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
4	99002176		Door, Outer	10	Appelez-nous	-
4	99001688		Ground Wire, Reinforcement	10	Appelez-nous	-
5	WP99002362		Spacer, Foam   (Replaces: 99002362)	10			$ 5.55
5	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
5	99002188		Retainer, Wire	10	Appelez-nous	-
6	99001898		Hinge (lt)	10	Appelez-nous	-
6	99001075		Screw	10			$ 5.81
6	99001899		Hinge (rt)	10	Appelez-nous	-
7	99002469		Spring, Door	10			$ 5.83
8	Y912620		Screw	10			$ 5.48
8	99002389		Door, Inner (non-rinse Aid)	10	Appelez-nous	-
8	99003482		Foam Strip(short)	33			$ 7.75
8	99003637		Door, Inner (no Rinse Aid)	33	Appelez-nous	-
8	99003638		Door Liner, Secondary	33	Appelez-nous	-
8	99003481		Foam Strip(long)	33			$ 8.34
8	99002499		Felt, Vent (door)	10			$ 32.11
9	Y913178		Seal, Reinforcement	10			$ 7.50
9	Y913093		Bar, Reinforcement	10	Appelez-nous	-
10	99001132		Cover, Wire (wht)	10	Appelez-nous	-
10	99001194		Screw, Access Panel	10			$ 6.18
11	99001194		Screw, Access Panel	10			$ 6.18
11	99001234		Panel, Access (wht)	10	Appelez-nous	-
12	903233		Foam Strip, Insulation	10	Appelez-nous	-
13	WP912653		Link, Door Spring   (Replaces: 912653)	10		Immediately	$ 7.45
14	Y912910		Cover, Vent	10			$ 30.43
14	Y912620		Screw	10			$ 5.48
15	99001131		Shield, Tub (wht)	10	Appelez-nous	-
15	WP6-912366		Screw   (Replaces: 912366)	10			$ 7.29

    View Diagram in Separate Window       Print Part List
