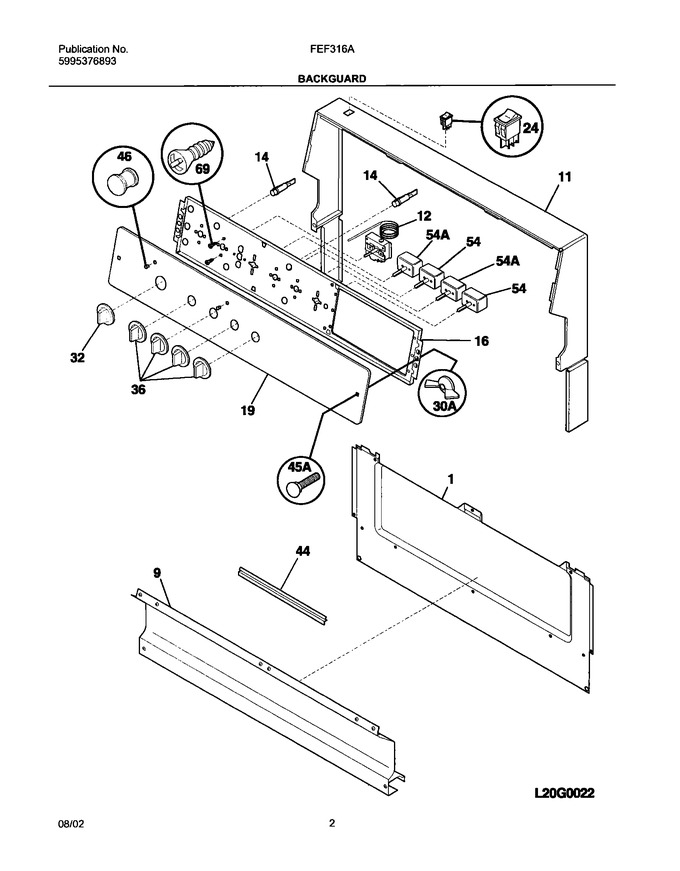

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303289640		Shield-backguard,rear Wall				$ 144.64
9	316133509		Trim,splasher ,bisque ,lower		Appelez-nous	-
11	316083724		Trim,wrapper ,bisque		Appelez-nous	-
14	3201726		Light/lamp, Indicator, Blue, 250 V		Appelez-nous	-
16	316042602		Plate, Instrument Mtg		Appelez-nous	-
19	316034154		Panel,backguard ,bisque		Appelez-nous	-
32	316123309		Knob,thermostat ,bisque		Appelez-nous	-
36	316123310		Knob,infinite Switch ,bisque		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
46	316065801		Lens,indicator Light ,red		Appelez-nous	-
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
30A	316064300		Nut,nylon		Appelez-nous	-
45A	316056905		Bolt,fastener ,nylon ,bisque ,(2)		Appelez-nous	-
F12	316032408		Thermostat,oven				$ 355.67
F24	316246002		Switch,rocker ,bisque ,oven Light		Appelez-nous	-
F54	5303935086		Switch,element ,6``   (Replaces: 5303285142)			Immediately	$ 51.95
F54A	5303285143		Switch,element ,8``		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303272555		Clip-backguard		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
