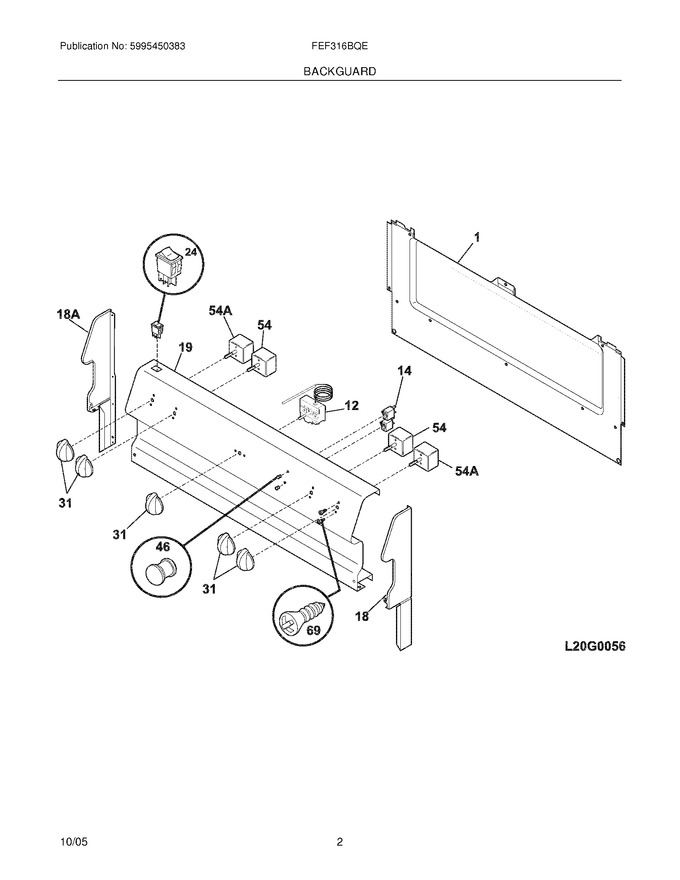

03 - Backguard
05 - Body
07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303289640 | Shield-backguard,rear Wall |
|
$ 144.64 | |||||
| 14 | 316022503 | Light/lamp,indicator ,surface ,250 V |
|
Immediately | $ 70.16 | ||||
| 18 | 316263406 | End Cap,bisque ,rh |
|
- | |||||
| 19 | 316263314 | Panel,backguard ,bisque |
|
- | |||||
| 31 | 316223003 | Knob,control ,bisque |
|
$ 48.20 | |||||
| 46 | 316040201 | Lens,indicator Light ,red |
|
- | |||||
| 69 | 5303288565 | Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg |
|
$ 3.12 | |||||
| 18A | 316263407 | End Cap,bisque ,lh |
|
- | |||||
| F12 | 316215900 | Thermostat |
|
Immediately | $ 187.67 | ||||
| F24 | 316280102 | Switch,rocker ,bisque |
|
- | |||||
| F54 | 5303935086 | Switch,infinite ,small Element (Replaces: 316021500) |
|
Immediately | $ 51.95 | ||||
| F54A | 316436001 | Switch,infinite ,large Element (Replaces: 316021501) |
|
Immediately | $ 51.68 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316519700 | Screw,cup Pt ,8-18 X 0.375 ,chrome (Replaces: 316021108) |
|
$ 10.02 |
