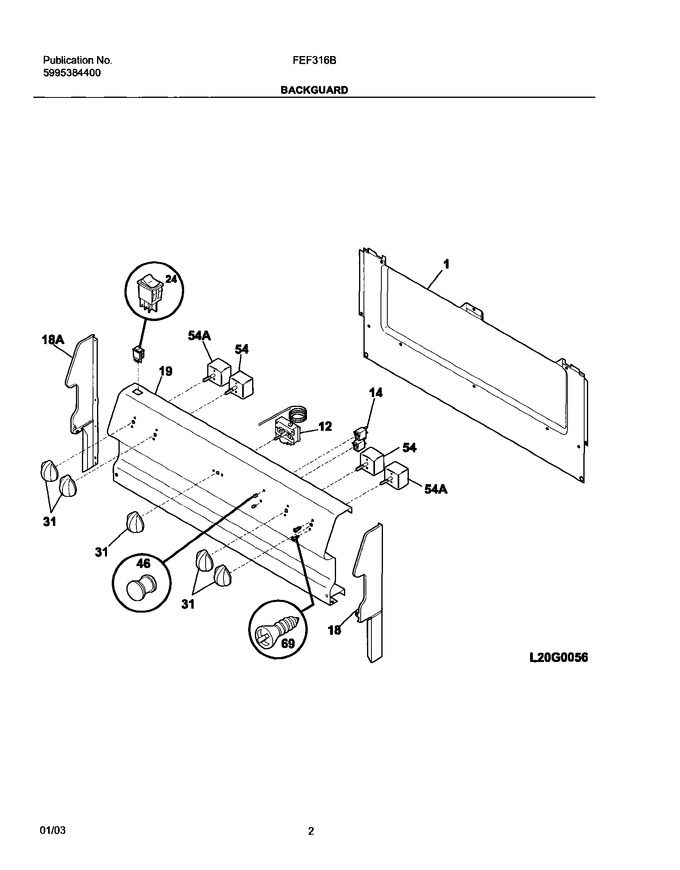

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303289640		Shield-backguard,rear Wall				$ 144.64
14	316022503		Light/lamp,indicator ,surface ,250 V			Immediately	$ 70.16
18	316263404		End Cap,white ,rh		Appelez-nous	-
19	316263313		Panel,backguard ,white		Appelez-nous	-
24	5304527842		Switch,rocker ,white ,oven Light   (Replaces: 316246000)			Immediately	$ 16.13
31	316223000		Knob,control ,white			Immediately	$ 72.80
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
18A	316263405		End Cap,white ,lh		Appelez-nous	-
F12	316032403		Thermostat		Appelez-nous	-
F54	5303935086		Switch,infinite ,small Element   (Replaces: 316021500)			Immediately	$ 51.95
F54A	316436001		Switch,infinite ,large Element   (Replaces: 316021501)			Immediately	$ 51.68
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
