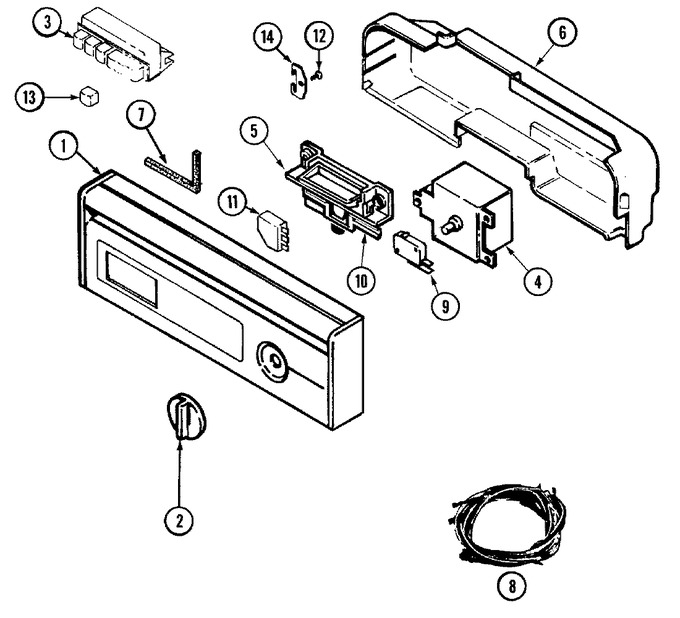

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
1	99001373		Panel, Control (blk)	28	Appelez-nous	-
1	903909		Panel, Control	A0			$ 52.85
2	903496		Knob, Timer	A0	Appelez-nous	-
3	913180		Shield, Control	A0	Appelez-nous	-
3	903520		Switch (5-button)	A0	Appelez-nous	-
4	903502CP		Timer   (Replaces: 903502)	A0	Appelez-nous	-
4	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
5	Y912664		Holder, Door Switch	A0			$ 38.66
5	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
6	Y912937		Barrier, Control Panel	A0	Appelez-nous	-
7	Y913177		Seal, Vent Outlet	A0	Appelez-nous	-
7	Y913116		Liner, Vent	A0	Appelez-nous	-
8	WP489128		Screw   (Replaces: 912365)	A0			$ 9.79
8	315471		Retainer, Wire	A6	Appelez-nous	-
8	903505		Harness, Wire	A0	Appelez-nous	-
8	99001043		Wire Harness, Main	A6	Appelez-nous	-
8	99001172		Wire Harness, Main	B6	Appelez-nous	-
9	99002254		Switch, Door   (Replaces: 903086)	A0			$ 116.79
10	Y912939		Handle, Latch	A0	Appelez-nous	-
10	12001117		Kit, Latch Handle (blk)	A9	Appelez-nous	-
11	903651		Extender, Cycle	A0	Appelez-nous	-
12	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	A0		Immediately	$ 6.90
13	913146		Button (blk)	A0	Appelez-nous	-
14	913139		Bracket, Switch	A0	Appelez-nous	-
NI	Y913008		Manual, Use & Care	A0	Appelez-nous	-
NI	913232		Manual, Use & Care (frch)	B6	Appelez-nous	-
