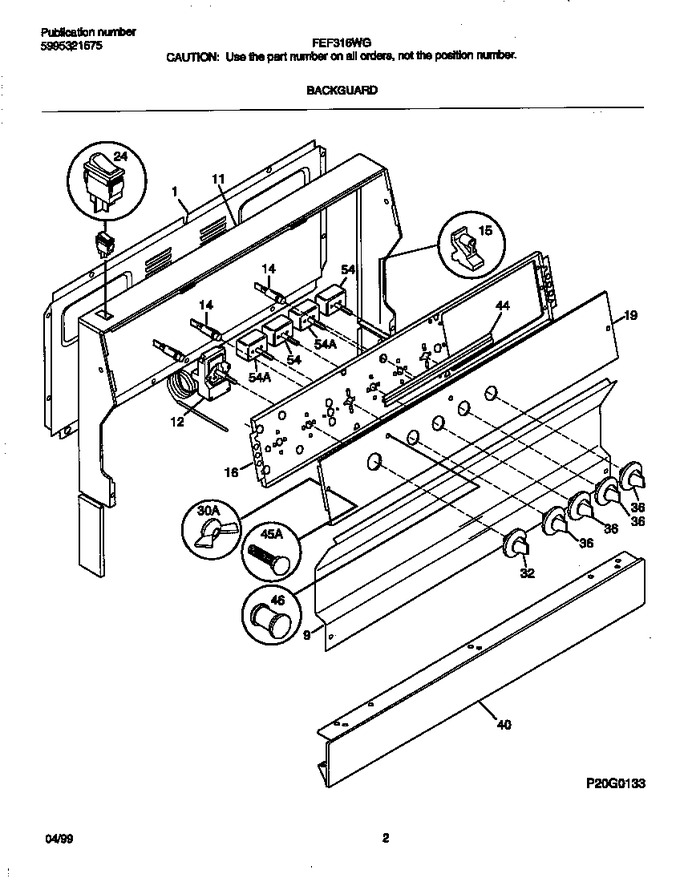

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131123		Shield-backguard,rear Wall		Appelez-nous	-
9	316043602		Trim-splasher, Almond		Appelez-nous	-
11	316083717		Trim-wrapper, Almond		Appelez-nous	-
12	5303212745		Thermostat-oven		Appelez-nous	-
14	3201726		Light/lamp, Indicator, Blue, 250 V		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
16	316042602		Plate, Instrument Mtg		Appelez-nous	-
19	316034129		Panel-control,metal ,paint ,almond		Appelez-nous	-
24	316005608		Switch-rocker,oven Light ,almond		Appelez-nous	-
30	316064300		Nut,nylon		Appelez-nous	-
32	316016838		Knob-thermostat, Almond		Appelez-nous	-
36	316016935		Knob-control, Almond		Appelez-nous	-
40	316064015		Panel-manifold, Almond		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
45	316056904		Bolt,fastener ,nylon ,almond ,(2)		Appelez-nous	-
46	316065801		Lens-light/lamp,indicator ,red		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 5303285142)			Immediately	$ 51.95
54	5303285143		Switch, 8`` Element		Appelez-nous	-
*98920	316001558		Harness		Appelez-nous	-
*98921	316002675		Diagram-wiring		Appelez-nous	-
*98922	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*98923	316519700		Screw, Cup Pt, 8-18 X 3/8, Hinge   (Replaces: 316021108)				$ 10.02
*98924	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*98925	316112500		Template, Anti-tip Bracket				$ 3.55
*98926	5303272555		Clip-backguard		Appelez-nous	-
