SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

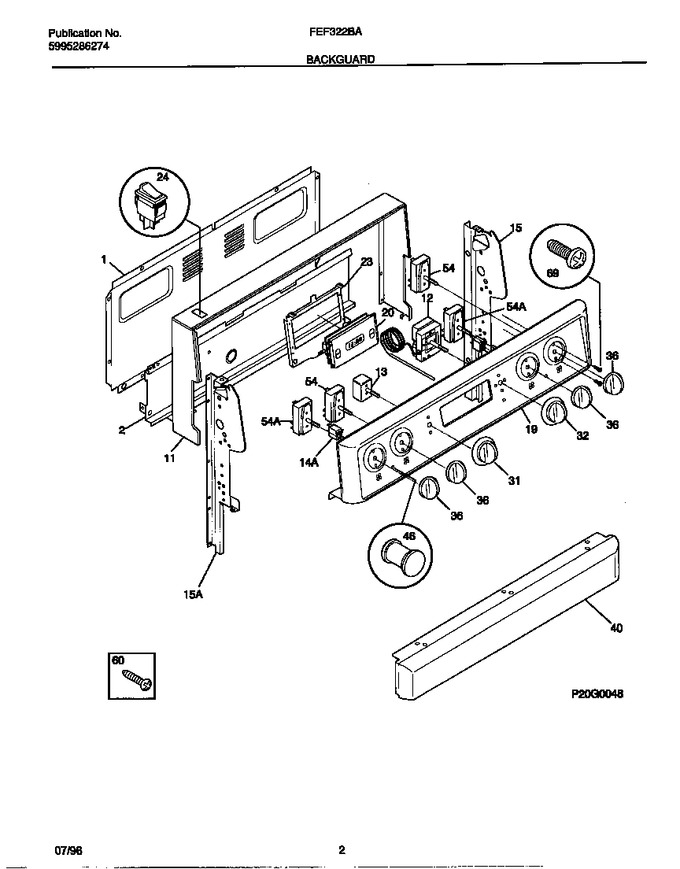

1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316083705		Trim-wrapper, Black		Appelez-nous	-
12	316032400		Thermostat, Oven, Non Sc		Appelez-nous	-
13	316032500		Switch, Selector		Appelez-nous	-
14	316022503		Light-lamp, Indicator, 250 V			Immediately	$ 70.16
15	316023111		Support-backguard, Lh		Appelez-nous	-
15	316023110		Support-backguard, Rh		Appelez-nous	-
19	316024477		Panel-control		Appelez-nous	-
20	316066800		Clock/timer, Electronic, Black		Appelez-nous	-
23	316033203		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker Type, Black   (Replaces: 316005602)			Immediately	$ 11.38
31	316054904		Knob-selector, (3) Pos		Appelez-nous	-
32	316054900		Knob-thermostat		Appelez-nous	-
36	316025100		Knob-control, Infinite Sw		Appelez-nous	-
40	316025800		Panel-manifold		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
54	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
69	5303292005		Screw-switch Mtg, 8-32 X 5/32, (2)		Appelez-nous	-
*18560	316519700		Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl   (Replaces: 316021108)				$ 10.02
