SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

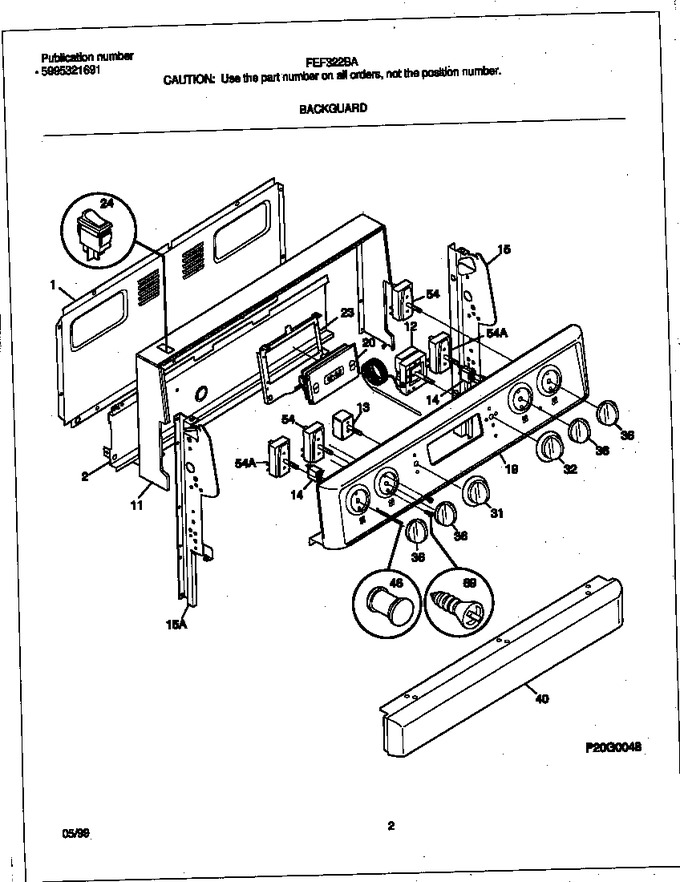

1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
12	316032405		Thermostat, Oven Non Sc				$ 303.35
13	316032500		Switch, Selector		Appelez-nous	-
14	316022504		Light-indicator,250v		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316100529		Panel-backguard,black		Appelez-nous	-
20	316120500		Clock-timer		Appelez-nous	-
23	316033204		Bracket-timer		Appelez-nous	-
24	5304527841		Switch-rocker, Oven Light, Black   (Replaces: 316005602)			Immediately	$ 11.38
31	316109602		Knob-selector		Appelez-nous	-
32	316109600		Knob-thermostat		Appelez-nous	-
36	316025108		Knob-control, Infinite Sw, Black		Appelez-nous	-
40	316025800		Panel-manifold		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	316436001		Switch,infinite , 8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
*02080	316021109		Screw,hex ,8-18 X 0.375 ,back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*02081	316519700		Screw, Cup Pt, 8-18 X 3/8, Hinge   (Replaces: 316021108)				$ 10.02
*02082	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*02083	316112500		Template, Anti-tip Bracket				$ 3.55
*02084	5303292005		Screw-switch/handle,8-32 X 5/32		Appelez-nous	-
*02086	316098007		Overlay-clock		Appelez-nous	-
11A	316061851		Trim-wrapper,textured ,black		Appelez-nous	-
11B	316083719		Trim-wrapper,textured ,black		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
