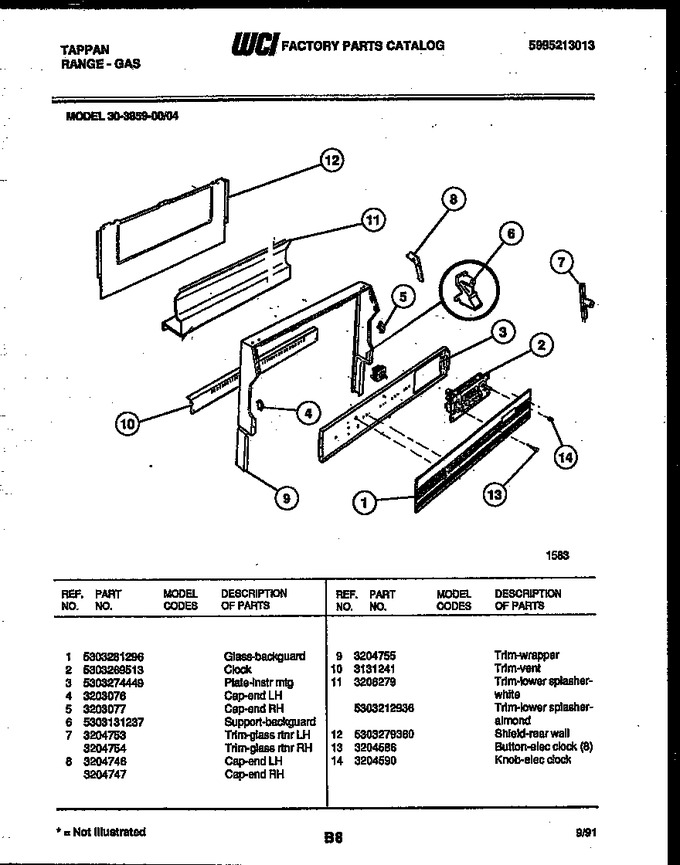

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303281296 | Glass-backguard |
|
- | |||||
| 2 | 5303269513 | Clock |
|
- | |||||
| 3 | 5303274449 | Plate-instr Mtg |
|
- | |||||
| 4 | 3203076 | Cap End-lh |
|
- | |||||
| 5 | 3203077 | Cap End-rh |
|
- | |||||
| 6 | 5303131237 | Support, Backguard |
|
- | |||||
| 7 | 3204753 | Trim-glass Rtnr Lh |
|
- | |||||
| 8 | 3204746 | Cap-end Lh |
|
- | |||||
| 9 | 3204755 | Trim, Wrapper |
|
- | |||||
| 10 | 3131241 | Trim-vent |
|
- | |||||
| 11 | 5303212936 | Trim-lower Splasher-almond |
|
- | |||||
| 12 | 5303279360 | Shield-rear Wall |
|
- | |||||
| 13 | 3204586 | Button - Elec Clock (8) |
|
- | |||||
| 14 | 3204590 | Knob-elec Clock |
|
- | |||||
| 7A | 3204754 | Trim-glass Rtnr Rh |
|
- | |||||
| 8A | 3204747 | Cap-end Rh |
|
- |
