SELECT A DIAGRAM

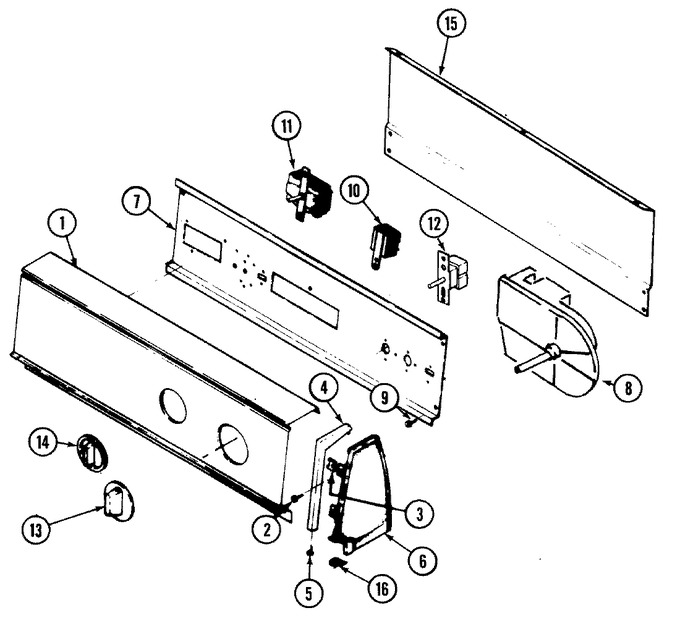

01 - Control Panel (rev. E-f)


02 - Heater (rev. E-f)


03 - Motor & Drive (rev. E-f)


04 - Tumbler (rev. E-f)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP12990527		Screw, Sems   (Replaces: 25-3457)	E-F		Immediately	$ 7.15
1	53-1286		Control Panel	E-F	Appelez-nous	-
2	25-7649		Screw	E-F	Appelez-nous	-
2	25-7793		Screw	E-F	Appelez-nous	-
3	25-7702		Speedclip, End Cap To Ctrl Pnl	E-F	Appelez-nous	-
4	53-0277		Trim, End Cap (rt)	E-F	Appelez-nous	-
4	53-0278		Trim, End Cap (lt)	E-F	Appelez-nous	-
5	25-7760		Screw	E-F	Appelez-nous	-
6	35-2487		Cap, End (rt)	E-F	Appelez-nous	-
6	35-2488		Cap, End (lt)	E-F	Appelez-nous	-
7	53-1676		Shield, Control	E-F	Appelez-nous	-
7	53-2504		Spacer, Control Shield	E-F	Appelez-nous	-
7	WP90767		Screw   (Replaces: 25-3092)	E-F		Immediately	$ 7.04
8	63-6743		Resistor Assy.	E-F	Appelez-nous	-
8	53-1816		Timer	E-F	Appelez-nous	-
9	WP33002917		Screw   (Replaces: 25-7435)	E-F		Immediately	$ 6.90
10	WP90767		Screw   (Replaces: 25-3092)	E-F		Immediately	$ 7.04
10	63-6731		Buzzer	E-F	Appelez-nous	-
11	WP90767		Screw   (Replaces: 25-3092)	E-F		Immediately	$ 7.04
11	53-1266		Rotary Switch	E-F	Appelez-nous	-
12	53-0346		Switch, Wrinkle Out	E-F	Appelez-nous	-
12	WP90767		Screw   (Replaces: 25-3092)	E-F		Immediately	$ 7.04
13	53-0653		Knob	E-F	Appelez-nous	-
14	35-0145		Selector Knob	E-F	Appelez-nous	-
15	35-2688		Shield, Control Panel (rear)	E-F	Appelez-nous	-
15	WP12990527		Screw, Sems   (Replaces: 25-3457)	E-F		Immediately	$ 7.15
15	WP90767		Screw   (Replaces: 25-3092)	E-F		Immediately	$ 7.04
16	25-2219		Screw	E-F	Appelez-nous	-
16	25-7851		Speedclip, End Cap To Top	E-F	Appelez-nous	-
NI	63-5577-1		Manual, Use & Care	E-F	Appelez-nous	-
NI	53-1450-1		Manual, Use & Care	E-F	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
