Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP3400074 Screw   (Replaces: 25-7863) Special Order $ 6.47

1 LA-1044 Heater Element   (Replaces: 53-0920) In-Stock Immediately $ 51.91

2 25-7819 Screw No.8-18x1/2 Pan Hd Appelez-nous -
2 53-1232 Heater Housing Assembly Appelez-nous -
3 WP53-0771 Thermostat, Hi-limit   (Replaces: 53-0771) Special Order $ 110.87

3 WP53-0771 Hi Lmt Tstat   (Replaces: 53-0306) Special Order $ 110.87

4 53-0285 Bracket, Thermostat Appelez-nous -
4 WP90767 Screw   (Replaces: 25-7741) In-Stock Immediately $ 7.04

5 WP112432 Nut (no.10-32)   (Replaces: 25-0027) Special Order $ 7.16

5 25-6124 Nut Appelez-nous -
5 25-3123 Washer, Cup Appelez-nous -
5 25-3122 Washer, Flat Appelez-nous -
5 53-0166 Terminal Block Appelez-nous -
5 WP3400074 Screw   (Replaces: 25-7803) Special Order $ 6.47

6 WP53-1182 Fuse, Thermal   (Replaces: 53-1182) Special Order $ 55.53

7 53-1181 Bracket, Thermal Fuse Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

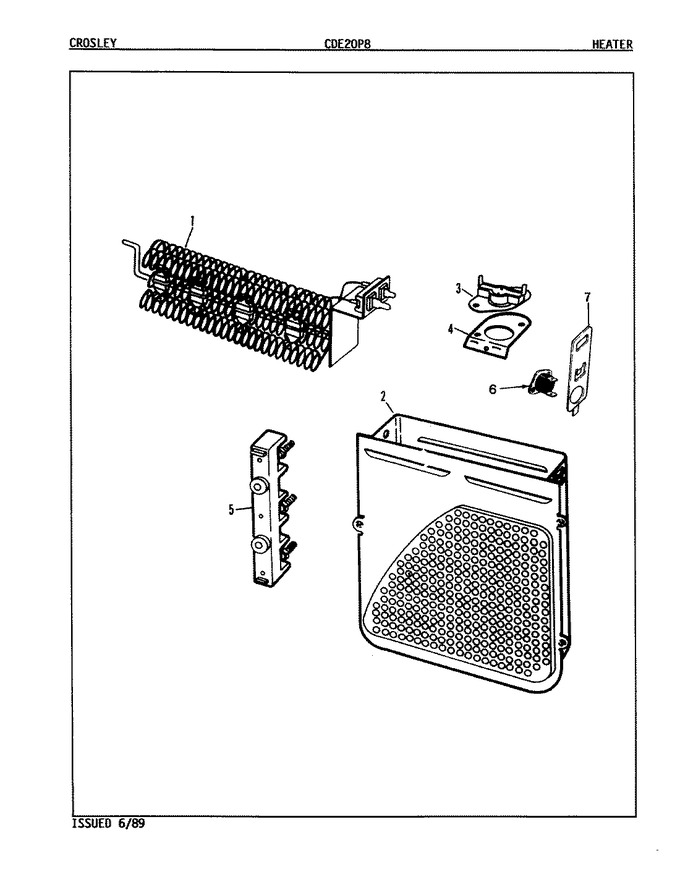

Diagram for CDE20P8W
