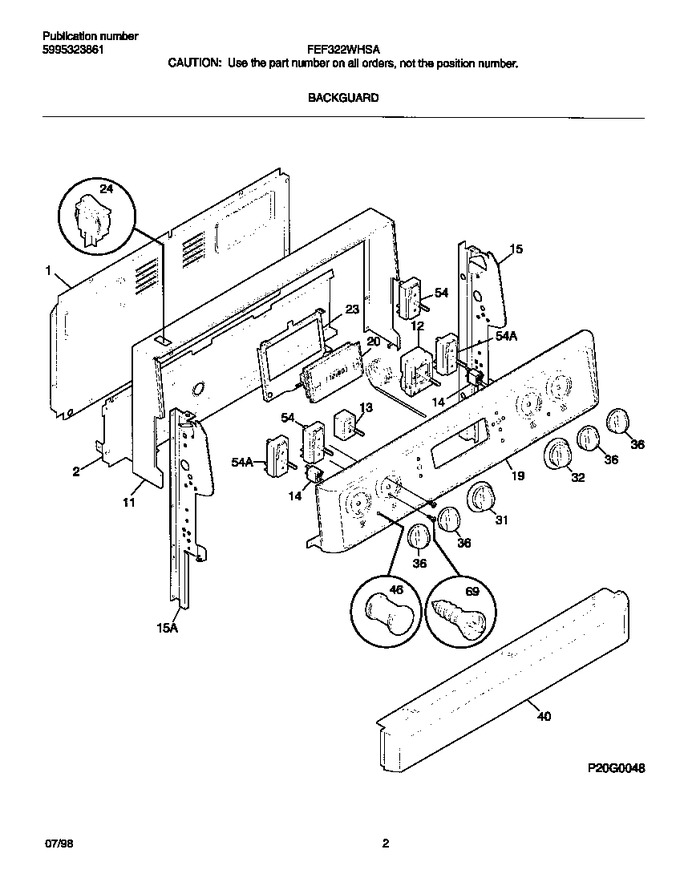

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316083721		Trim-wrapper,, Textured , White		Appelez-nous	-
11	316061852		Trim-wrapper,textured ,white		Appelez-nous	-
12	316032405		Thermostat, Oven Non Sc				$ 303.35
13	316032500		Switch, Selector		Appelez-nous	-
14	316022504		Light-indicator,250v		Appelez-nous	-
15	316023109		Support,backguard ,lh		Appelez-nous	-
15	316023108		Support-backguard, Rh		Appelez-nous	-
19	316024483		Panel-control, White		Appelez-nous	-
20	316120500		Clock-timer		Appelez-nous	-
23	316033204		Bracket-timer		Appelez-nous	-
24	5304527842		Switch-rocker, Oven Light ,white   (Replaces: 316118101)			Immediately	$ 16.13
31	316109603		Knob-selector,white		Appelez-nous	-
36	316025106		Knob-control, Infinite Sw, White				$ 57.64
36	316109601		Knob-thermostat		Appelez-nous	-
40	316025808		Panel-manifold,white		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	316436001		Switch,infinite , 8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
54	5303935086		Switch,infinite , 6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
*05120	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*05121	316021109		Screw-8-18x1/2 Tr Sqd Black   (Replaces: 316021110)			Immediately	$ 27.50
*05122	316112500		Template, Anti-tip Bracket				$ 3.55
*05123	5303292005		Screw-switch/handle,8-32 X 5/32		Appelez-nous	-
*05124	316098008		Overlay-clock,white		Appelez-nous	-
