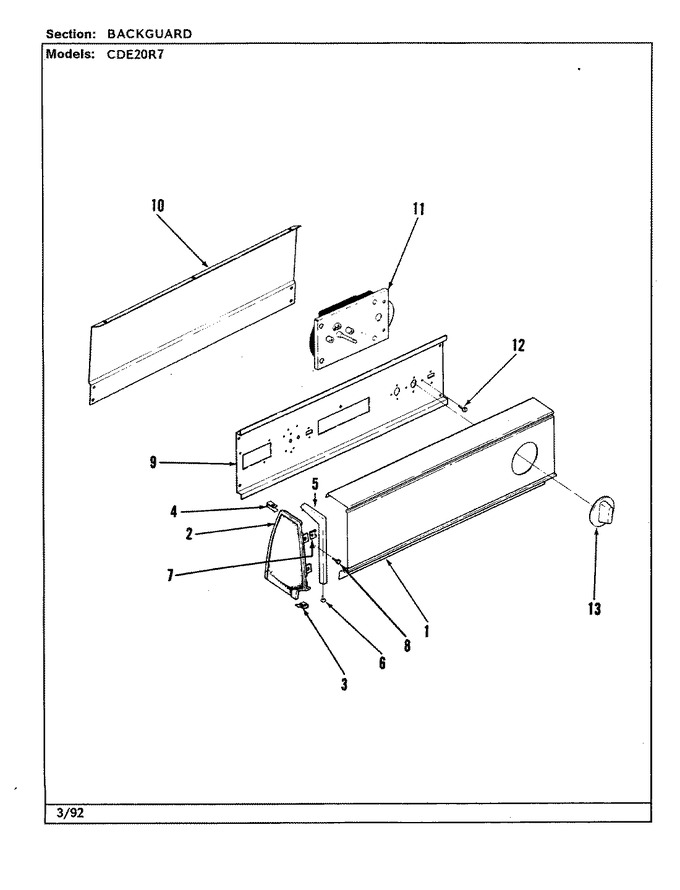

01 - Cabinet (rev. A-b)
02 - Control Panel (rev. A-b)
03 - Door (rev. A-b)
04 - Heater (rev. A-b)
05 - Motor & Drive (rev. A-b)
06 - Tumbler (rev. A-b)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 53-1925 | Control Panel |
|
- | |||||
| 2 | 35-2487 | Cap, End (rt) |
|
- | |||||
| 2 | 25-7649 | Screw |
|
- | |||||
| 2 | 35-2488 | Cap, End (lt) |
|
- | |||||
| 2 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 3 | 25-7697 | Screw |
|
- | |||||
| 3 | 25-7851 | Speedclip, End Cap To Top |
|
- | |||||
| 4 | WP33002917 | Screw (Replaces: 25-7435) |
|
Immediately | $ 6.90 | ||||
| 5 | 53-0277 | Trim, End Cap (rt) |
|
- | |||||
| 5 | 53-0278 | Trim, End Cap (lt) |
|
- | |||||
| 6 | 25-7760 | Screw |
|
- | |||||
| 7 | 25-7025 | Clip |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 9 | 53-1676 | Shield, Control |
|
- | |||||
| 10 | 35-2688 | Shield, Control Panel (rear) |
|
- | |||||
| 11 | 53-1758 | Timer | A |
|
- | ||||
| 11 | 53-1303CP | Timer (Replaces: 53-1303) |
|
- | |||||
| 11 | 53-0635 | Timer Motor |
|
- | |||||
| 11 | 63-6743 | Resistor Assy. |
|
- | |||||
| 12 | 25-0205 | Screw |
|
- | |||||
| 12 | WP33002917 | Screw (Replaces: 25-7435) | A |
|
Immediately | $ 6.90 | |||
| 13 | 53-0653 | Knob |
|
- | |||||
| 13 | 53-1639 | Buzzer Assy. |
|
- | |||||
| 13 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| NI | 53-1926-1 | Manual, Use & Care |
|
- |
