SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body

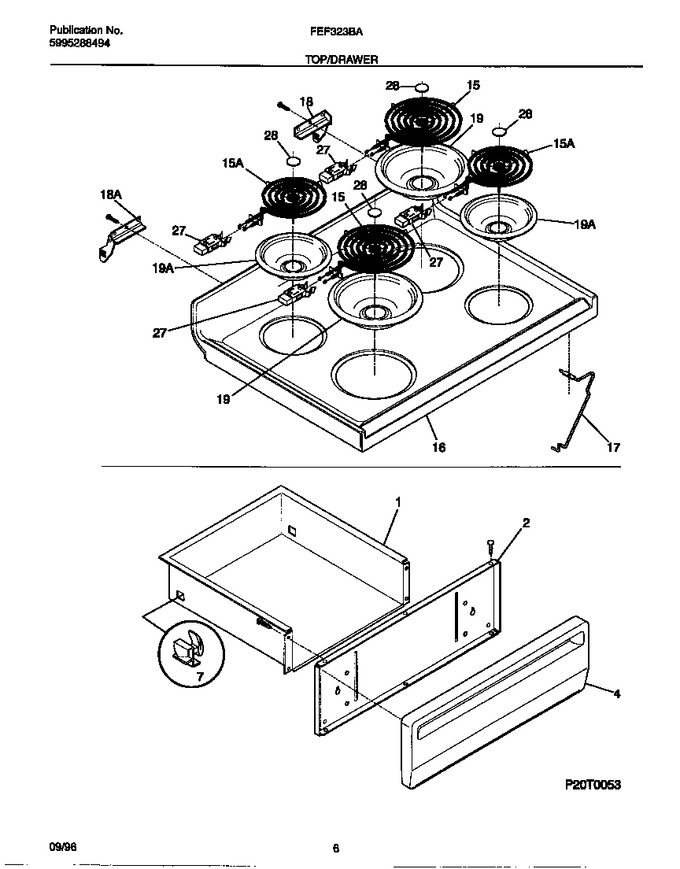

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
4	316021109		Screw-drawer Pnl (not Illustrated)   (Replaces: 316021112)			Immediately	$ 27.50
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	316442301		Element-surface, Large/8 Inch   (Replaces: 5303012223)			Immediately	$ 44.39
15	318372211		Element-surface, Small/6 Inch   (Replaces: 08067762)			Immediately	$ 45.14
16	316202388		Main Top, White   (Replaces: 316020907)				$ 407.24
17	316057601		Rod-maintop Support				$ 64.49
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
19	A316222301		Pan-surface Element, Large/8 Inch   (Replaces: 5303935053)			Immediately	$ 12.53
19	A316222201		Pan-surface Element, Small/6 Inch   (Replaces: 5303935055)			Immediately	$ 14.64
*55486	316001725		Harness-wiring, Surface Element		Appelez-nous	-
*55487	316519700		Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl   (Replaces: 316021108)				$ 10.02
*55488	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*55489	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
27A	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
27B	5303935058		Terminal Block Kit, Surface Element   (Replaces: 5301167733)			Immediately	$ 13.81
28A	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
28B	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46

    View Diagram in Separate Window       Print Part List
