SELECT A DIAGRAM

Diagram for 01 - Cabinet
01 - Cabinet

Diagram for 02 - Control Panel
02 - Control Panel

Diagram for 03 - Door
03 - Door

Diagram for 04 - Heater
04 - Heater

Diagram for 05 - Motor & Drive
05 - Motor & Drive

Diagram for 06 - Tumbler
06 - Tumbler

Diagram for 07 - Wiring Information
07 - Wiring Information


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
NI 15001207 Wiring Information REV. B Appelez-nous -
NI 15001206 Wiring Information Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

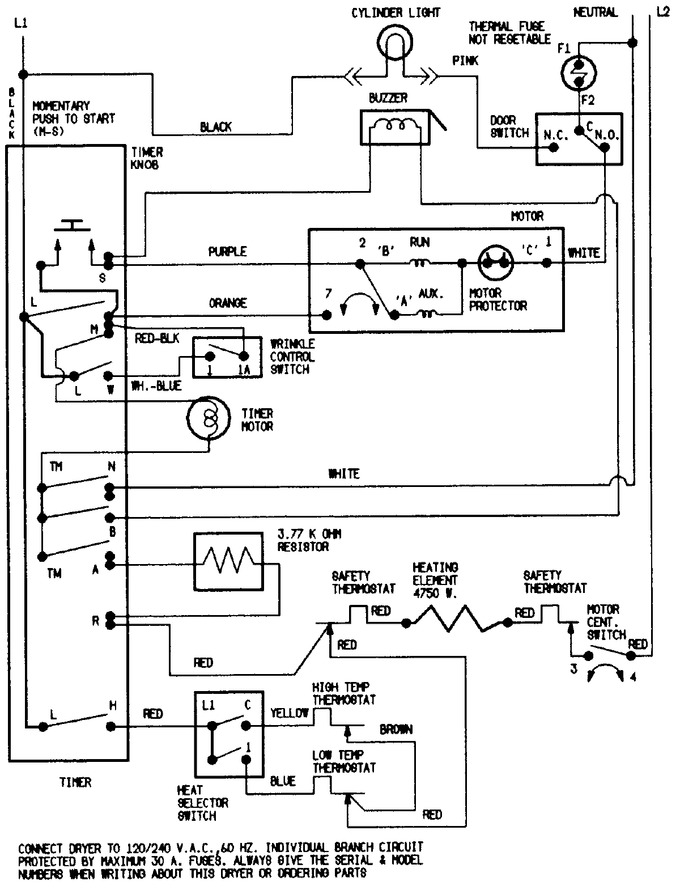

Diagram for CDE20T8VC
