New Model Search:

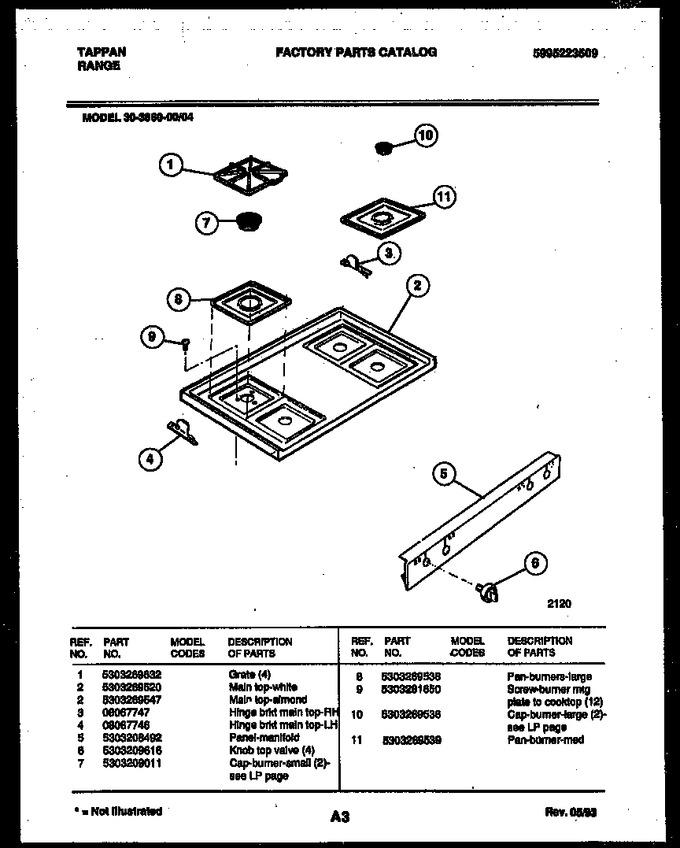

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318228310 | Grate (4) (Replaces: 5303269632) |
|
Immediately | $ 22.91 | ||||
| 2 | 5303269520 | Main Top-white |
|
- | |||||
| 3 | 08067747 | Hinge Brkt Main Top-rh |
|
- | |||||
| 4 | 08067746 | Hinge Brkt Main Top-lh |
|
- | |||||
| 5 | 5303208492 | Panel, Manifold |
|
- | |||||
| 6 | 5303209616 | Knob-top Valve, (4) |
|
- | |||||
| 7 | 5303209011 | Cap-burner-small (2) (see L.p. Page) |
|
- | |||||
| 8 | 5303269538 | Pan-burners-large |
|
- | |||||
| 9 | 5303281650 | Screw-burner Mtg Plate To Cooktop (12) |
|
- | |||||
| 10 | 5303269536 | Cap-burner-large (2) See Lp Page |
|
- | |||||
| 11 | 5303269539 | Pan-burner-med |
|
$ 71.51 |
