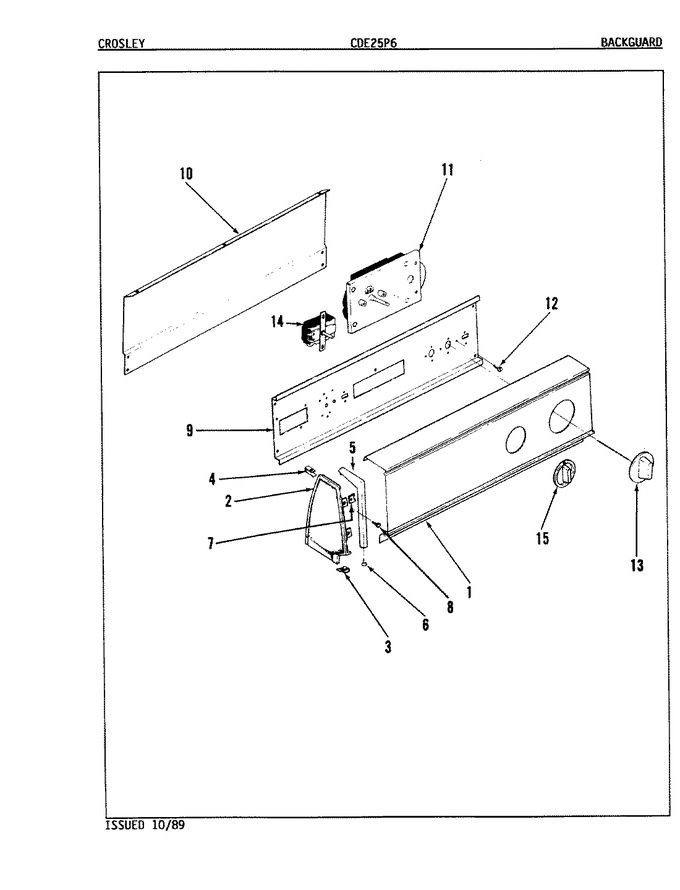

01 - Control Panel (orig. Rev. A-c)
02 - Cylinder & Drive (orig. & Rev.a-c)
03 - Exterior (orig. Rev. A-c)
04 - Heater (orig. Rev. A-c)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 53-1287 | Control Panel |
|
- | |||||
| 2 | 35-2488 | Cap, End (lt) | B |
|
- | ||||
| 2 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 2 | 35-2487 | Cap, End (rt) | B |
|
- | ||||
| 2 | 53-0264 | Rh Endcap |
|
- | |||||
| 2 | 53-0265 | Lh Endcap |
|
- | |||||
| 2 | 25-7649 | Screw |
|
- | |||||
| 3 | 25-7697 | Screw | B |
|
- | ||||
| 3 | 25-7851 | Speedclip, End Cap To Top | B |
|
- | ||||
| 3 | 25-7851 | Speedclip, End Cap To Top |
|
- | |||||
| 3 | 25-7697 | Screw |
|
- | |||||
| 4 | WP33002917 | Screw (Replaces: 25-7435) | B |
|
Immediately | $ 6.90 | |||
| 4 | WP33002917 | Screw (Replaces: 25-7435) |
|
Immediately | $ 6.90 | ||||
| 4 | 25-7852 | Speedclip, Rr Shld To End Cap |
|
- | |||||
| 5 | 53-0277 | Trim, End Cap (rt) |
|
- | |||||
| 5 | 53-0278 | Trim, End Cap (lt) |
|
- | |||||
| 6 | 25-7760 | Screw |
|
- | |||||
| 7 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 7 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | B |
|
- | ||||
| 8 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 9 | 53-1676 | Shield, Control | B |
|
- | ||||
| 9 | 53-0365 | Control Shield |
|
- | |||||
| 10 | 53-0268 | Rear Shield |
|
- | |||||
| 10 | 35-2688 | Shield, Control Panel (rear) | B |
|
- | ||||
| 11 | 53-1552 | Timer | A-B |
|
- | ||||
| 11 | 63-6752 | Timer Motor |
|
- | |||||
| 11 | 53-1807 | Timer | C |
|
- | ||||
| 11 | 53-1367 | Timer |
|
- | |||||
| 11 | 63-6743 | Resistor Assy. |
|
- | |||||
| 12 | 25-0205 | Screw |
|
- | |||||
| 12 | WP33002917 | Screw (Replaces: 25-7435) | C |
|
Immediately | $ 6.90 | |||
| 13 | 53-0653 | Knob |
|
- | |||||
| 14 | 53-1265 | Rotary Switch |
|
- | |||||
| 14 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 15 | 35-0145 | Selector Knob |
|
- | |||||
| NI | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| NI | 63-6731 | Buzzer |
|
- | |||||
| NI | 63-5577-1 | Manual, Use & Care |
|
- | |||||
| NI | 53-1453 | Manual, Use & Care |
|
- |
