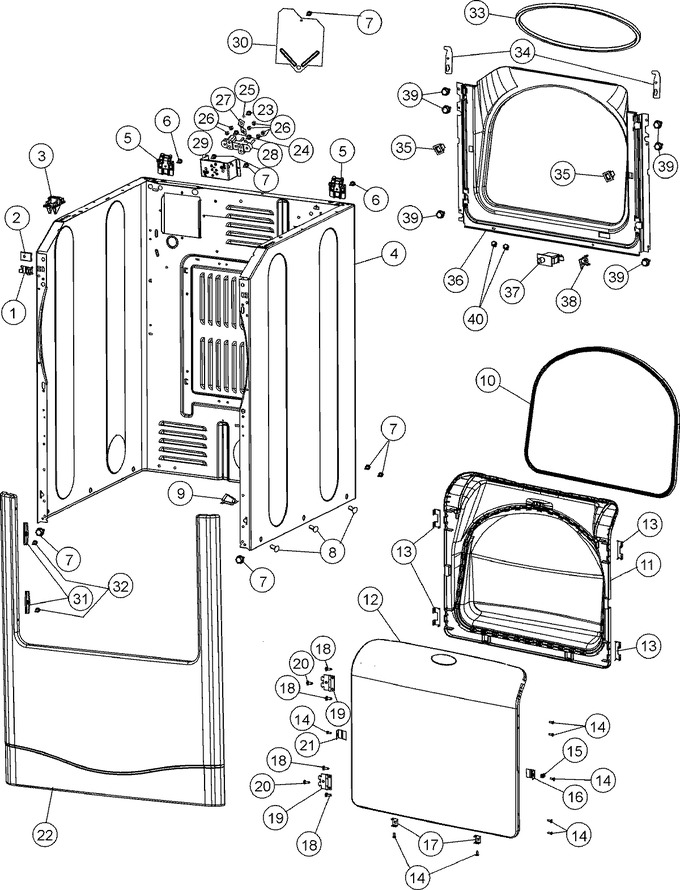

01 - Base (elec)
02 - Cabinet
03 - Control Panel & Top
04 - Supplemental Information
05 - Tumbler
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22002049 | Clip | 10 |
|
$ 8.40 | ||||
| 2 | 22002049 | Clip | 10 |
|
$ 8.40 | ||||
| 3 | 33002891 | Pin, Locator | 10 |
|
$ 30.03 | ||||
| 4 | 33003034 | Cabinet Assy, Dry-gray As Pack | 10 |
|
- | ||||
| 5 | 22004095 | Hinge, Plastic | 10 |
|
$ 20.04 | ||||
| 6 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 7 | 33002190 | Screw (no.10-3/8``) | 10 |
|
- | ||||
| 8 | 213007 | Screw (oval 6 Lobe) (Replaces: 33002794) | 10 |
|
$ 10.99 | ||||
| 9 | Y310376 | Clip, Wire Harness | 10 |
|
- | ||||
| 10 | WP33001807 | Seal, Tumbler (Replaces: 33001807) | 10 |
|
Immediately | $ 21.39 | |||
| 11 | WP33002544 | Door, Inner W/seal (wht) (Replaces: 33002544) | 10 |
|
$ 214.32 | ||||
| 12 | 22004497 | Door,outer Wshr-gray As Pack | 10 |
|
- | ||||
| 13 | 22002038 | Clip, Door (double) | 10 |
|
- | ||||
| 14 | 22002063 | Screw No.8-18ab Wafer Hd | 10 |
|
$ 5.48 | ||||
| 15 | 33001761 | Strike, Door (male) | 10 |
|
$ 5.84 | ||||
| 16 | WP33001793 | Bracket, Strike (Replaces: 33001793) | 10 |
|
$ 7.43 | ||||
| 17 | 22002039 | Clip, Door (single) | 10 |
|
$ 8.15 | ||||
| 18 | WP98006631 | Screw (Replaces: 22002062) | 10 |
|
$ 6.26 | ||||
| 19 | WP33001759 | Hinge, Door (Replaces: 33001759) | 10 |
|
$ 69.86 | ||||
| 20 | 22002012 | Screw, Hinge | 10 |
|
$ 5.48 | ||||
| 21 | 33001763 | Plug, Inner Door | 10 |
|
$ 6.90 | ||||
| 22 | 22004496 | Front Panel,wshr-gray As Pack | 10 |
|
- | ||||
| 23 | W10850756 | Screw (Replaces: 22003781) | 10 |
|
$ 6.98 | ||||
| 24 | W11164114 | Screw, No.10-24 X 3/4 Inch (Replaces: Y312209) | 10 |
|
$ 3.76 | ||||
| 25 | WP311093 | Washer, 7/32 Inch (Replaces: 311093) | 10 |
|
$ 7.25 | ||||
| 26 | WP112432 | Nut, Terminal Block (Replaces: 311484) | 10 |
|
$ 7.16 | ||||
| 27 | Y312184 | Strap, Ground | 10 |
|
- | ||||
| 28 | W11705611 | Block, Terminal (Replaces: 33001244) | 10 |
|
$ 87.34 | ||||
| 29 | 33001826 | Bracket, Terminal Block----na | 10 |
|
- | ||||
| 30 | 33001795 | Cover, Terminal Block | 10 |
|
- | ||||
| 31 | 33001764 | Cover, Hinge Hole (wht) | 10 |
|
$ 36.41 | ||||
| 32 | WP33001787 | Screw, Hinge (Replaces: 33001787) | 10 |
|
$ 10.45 | ||||
| 33 | 33001767 | Seal, Shroud | 10 |
|
$ 25.05 | ||||
| 34 | 33002597 | Hook, Security | 10 |
|
$ 28.59 | ||||
| 35 | LA-1003 | Catch, Door (female) (Replaces: Y304578) | 10 |
|
Immediately | $ 24.51 | |||
| 36 | 33001778 | Shroud (wht) | 10 |
|
- | ||||
| 37 | W10169313 | Switch, Door (Replaces: 33001508) | 10 |
|
Immediately | $ 29.18 | |||
| 38 | 33001760 | Bracket, Hinge | 10 |
|
- | ||||
| 39 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 40 | 33001768 | Screw, Shroud | 10 |
|
- |
