SELECT A DIAGRAM

01 - Cabinet


02 - Control Panel


03 - Door


04 - Harness, Wiring (series 15 Elec)


05 - Heater


06 - Motor & Drive


07 - Supplemental Information


08 - Tumbler


09 - Wiring Information

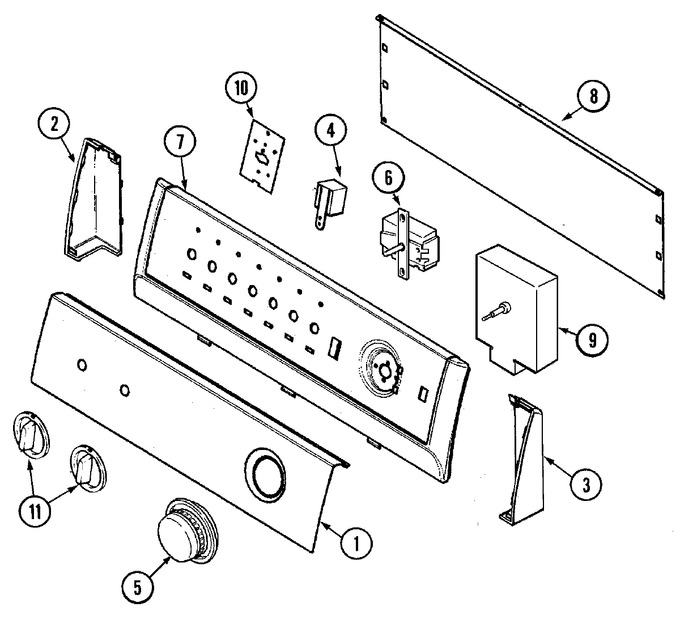

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31001735		Panel, Control (wht)	10	Appelez-nous	-
2	21001546		Endcap, Panel (lt-wht)	10	Appelez-nous	-
3	21001547		Endcap, Panel (rt-wht)	10	Appelez-nous	-
4	31001397		Buzzer	10	Appelez-nous	-
5	31001388		Knob/skirt, Timer (wht)	10			$ 25.71
6	31001449		Switch, Selector	10			$ 78.78
6	53-4394		Switch, Temperature	15	Appelez-nous	-
7	21001552		Frame (wht), Control Panel	10	Appelez-nous	-
8	21001527		Shield, Rear (back Panel)	10	Appelez-nous	-
9	WP53-1810		Timer   (Replaces: 53-1810)	10			$ 340.09
9	31001484		Resistor Asm (domestic/timer)	10			$ 5.84
10	21001517		Shield, Control (1 Pos.)	10			$ 4.83
11	21001544		Knob, Selector (wht)	10	Appelez-nous	-
NI	31001488		Harness, Wire	10	Appelez-nous	-
NI	53-4450		Harness, Wiring	15	Appelez-nous	-
NI	21001978		Lead Assembly (ground)	10	Appelez-nous	-
NI	31001740		Lead Assembly (heat)	10	Appelez-nous	-
NI	31001741		Lead Assembly (buzzer)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
