SELECT A DIAGRAM

01 - Cover


03 - Backguard

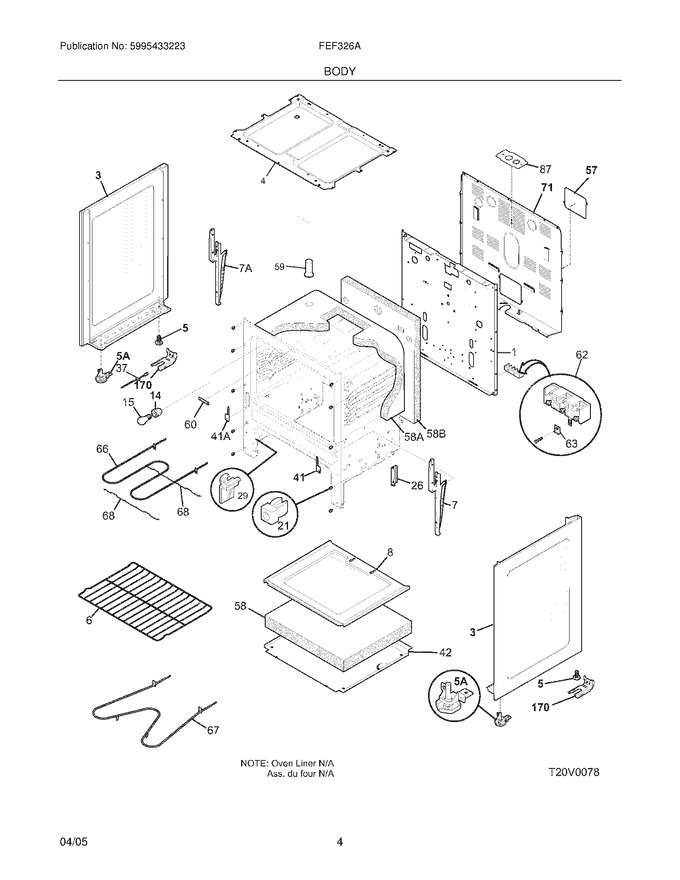

05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316201300		Back,main		Appelez-nous	-
3	316400142		Panel,bodyside ,white ,rh   (Replaces: 316400102)				$ 140.85
3	316400143		Panel,bodyside ,white ,lh   (Replaces: 316400103)				$ 140.85
4	5304522901		Burner Box   (Replaces: 316201401)				$ 85.69
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 27.50
6	316067902		Rack,oven			Immediately	$ 103.10
7	316216508		Hinge,oven Door ,rh		Appelez-nous	-
8	3203540		Panel-oven Bottom		Appelez-nous	-
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
21	316408000		Clip,bodyside				$ 18.20
26	316206300		Support,chassis ,(2)				$ 19.72
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
41	316233400		Cover,hinge Cutout ,rh				$ 67.99
42	316206200		Shield,wool ,lower		Appelez-nous	-
57	316422400		Cover,access		Appelez-nous	-
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
59	316073605		Tube,oven Vent				$ 80.80
60	316239100		Cover,oven Front		Appelez-nous	-
62	5303935238		Terminal Block Kit,w/ground Plate				$ 101.35
63	316278800		Plate,grounding Strap		Appelez-nous	-
66	316203200		Element-broil			Immediately	$ 164.45
67	316075103		Element-bake			Immediately	$ 42.36
68	316203400		Support,broil Element				$ 70.88
71	316422300		Shield,rear Wall		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
170	316112500		Template,anti-tip				$ 3.55
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
170	316112005		Anti-tip Kit,w/bracket,screw   (Replaces: 5303935180)			Immediately	$ 18.91
170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
41A	316233500		Cover-hinge,cutout ,lh				$ 16.96
58A	316047707		Insulation, 1`` ,oven Wrapper				$ 150.92
58B	316054202		Insulation, 1`` ,oven Back				$ 76.59
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316407200)			Immediately	$ 15.08
7A	316216509		Hinge,oven Door ,lh		Appelez-nous	-
F37	316233903		Probe-oven Temp   (Replaces: 316233900)			Immediately	$ 57.29
NI	316253146		Wiring Harness,main		Appelez-nous	-
NI	3203550		Plug,button ,oven Bottom			Immediately	$ 15.22
NI	316427400		Plate,weight ,(4)		Appelez-nous	-
NI	5303321321		Paint,touch-up ,black   (Replaces: 5303305345)			Immediately	$ 21.97
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316248900		Spacer,shield ,rear Wall		Appelez-nous	-
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
