SELECT A DIAGRAM

01 - Cover


03 - Backguard

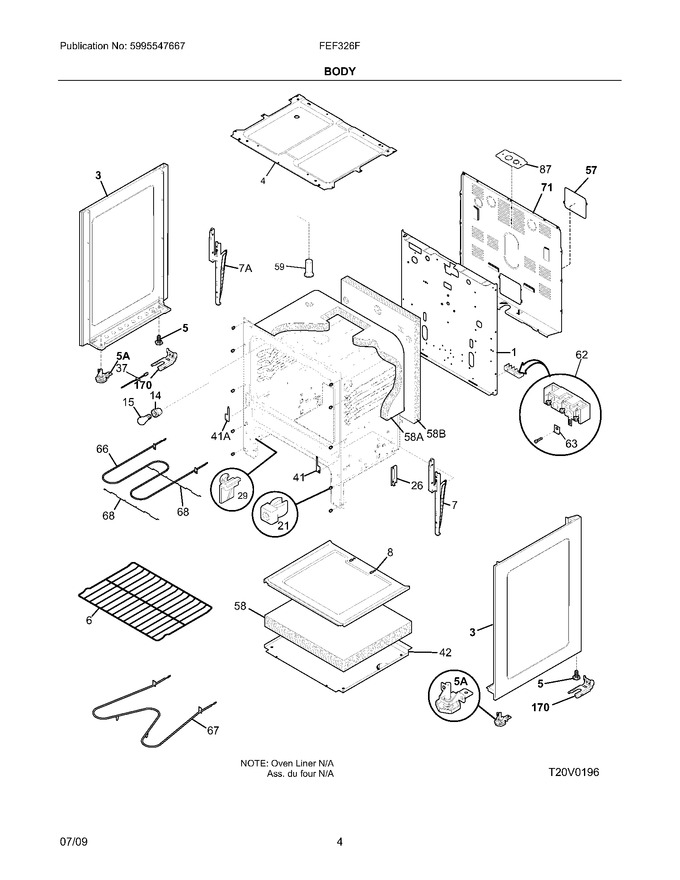

05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316201300		Back,main		Appelez-nous	-
3	316400121		Panel,bodyside ,bisque ,lh		Appelez-nous	-
3	316400120		Panel,bodyside ,bisque ,rh		Appelez-nous	-
4	5304522901		Burner Box   (Replaces: 316201401)				$ 85.69
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 27.50
6	316067902		Rack,oven ,(2)			Immediately	$ 103.10
7	316566202		Hinge,oven Door ,rh   (Replaces: 316216502)				$ 73.96
8	3203540		Panel-oven Bottom		Appelez-nous	-
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
21	316408000		Clip,bodyside				$ 18.20
26	316206300		Support,chassis ,(2)				$ 19.72
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
41	316233400		Cover,hinge Cutout ,rh				$ 67.99
42	316206200		Shield,wool ,lower		Appelez-nous	-
57	316457801		Cover,access   (Replaces: 316457800)				$ 12.89
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
59	316073605		Tube,oven Vent				$ 80.80
62	5304409888		Terminal Block Kit			Immediately	$ 26.69
63	316278800		Plate,grounding Strap		Appelez-nous	-
67	316075103		Element-bake			Immediately	$ 42.36
68	316203400		Support,broil Element				$ 70.88
71	316422304		Shield,rear Wall				$ 115.53
87	316081200		Bracket,cable Mtg		Appelez-nous	-
170	316112005		Anti-tip Kit,w/bracket,screw   (Replaces: 5303935180)			Immediately	$ 18.91
41A	316233500		Cover-hinge,cutout ,lh				$ 16.96
58A	316047707		Insulation, 1`` ,oven Wrapper				$ 150.92
58B	316054202		Insulation, 1`` ,oven Back				$ 76.59
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316407201)			Immediately	$ 15.08
7A	316216503		Hinge,oven Door ,lh		Appelez-nous	-
F170	316112500		Template,anti-tip				$ 3.55
F170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
F170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
F37	316233903		Probe-oven Temp   (Replaces: 316233900)			Immediately	$ 57.29
F66	316203200		Element-broil			Immediately	$ 164.45
FNI	316253146		Wiring Harness,main		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
NI	316248900		Spacer,shield ,rear Wall		Appelez-nous	-
NI	3203550		Plug,button ,oven Bottom			Immediately	$ 15.22
NI	316210800		Plug,button				$ 10.63
NI	316427400		Plate,weight ,(3)		Appelez-nous	-
NI	5304414035		Paint,touch-up ,bisque				$ 13.46
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
