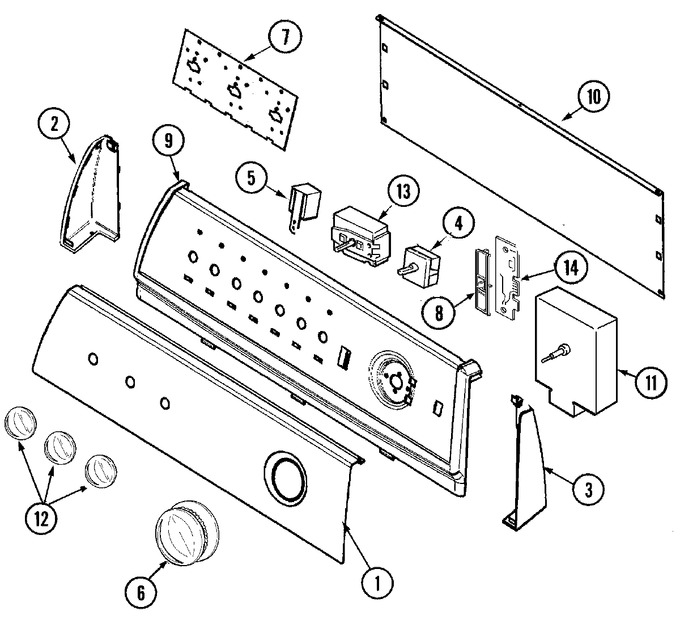

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31001737 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | 21001546 | Endcap, Panel (lt-wht) | 10 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 3 | 21001547 | Endcap, Panel (rt-wht) | 10 |
|
- | ||||
| 3 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 4 | 31001190 | Switch, Two Position Rotary | 10 |
|
$ 52.56 | ||||
| 5 | 31001397 | Buzzer | 10 |
|
- | ||||
| 6 | 31001388 | Knob/skirt, Timer (wht) | 10 |
|
$ 25.71 | ||||
| 7 | 21001603 | Shield, Control (3 Pos.) | 10 |
|
- | ||||
| 8 | 31001507 | Bracket, Circuit Board | 10 |
|
- | ||||
| 9 | 21001552 | Frame (wht), Control Panel | 10 |
|
- | ||||
| 10 | 21001527 | Shield, Rear (back Panel) | 10 |
|
- | ||||
| 11 | WP31001513 | Timer (120v/60hz) (Replaces: 31001513) | 10 |
|
$ 340.49 | ||||
| 12 | 21001544 | Knob, Selector (wht) | 10 |
|
- | ||||
| 13 | 53-4395 | Switch, Temperature | 15 |
|
- | ||||
| 13 | 31001447 | Switch, Temperature | 10 |
|
- | ||||
| 13 | 31001704 | Resistor Asm Temperature | 15 |
|
- | ||||
| 13 | 31001483 | Resistor Asm Temperature | 10 |
|
$ 6.41 | ||||
| 14 | WP33001212 | Board, Control-moisture Sensor (Replaces: 33001212) | 10 |
|
$ 269.69 | ||||
| NI | 31001741 | Lead Assembly (buzzer) | 10 |
|
- | ||||
| NI | 53-4451 | Harness, Wiring | 15 |
|
- | ||||
| NI | 31001508 | Harness, Wire | 10 |
|
- | ||||
| NI | 21001980 | Lead Assembly (ground) | 10 |
|
- | ||||
| NI | 31001558 | Lead Assembly (sensor) | 10 |
|
- | ||||
| NI | 31001740 | Lead Assembly (heat) | 10 |
|
- |
