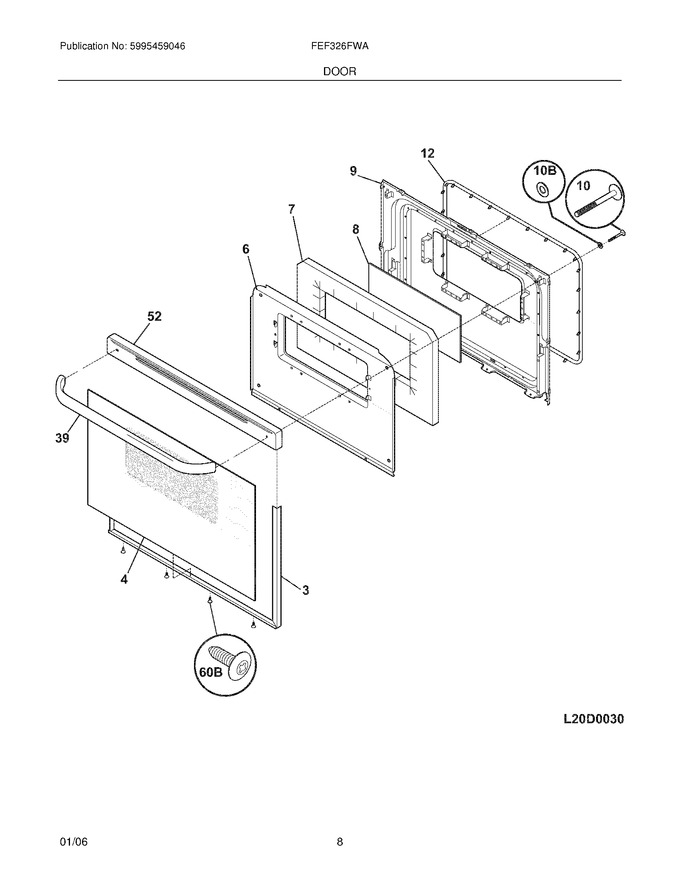

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303935191 | Trim Kit-door,3 Sided ,black ,w/tape And Foil |
|
$ 141.75 | |||||
| 4 | 5303935203 | Glass,door Kit ,black ,outer ,w/ Foil Tape |
|
$ 211.91 | |||||
| 6 | 316222703 | Shield,oven Door ,wool (Replaces: 316222709) |
|
$ 78.67 | |||||
| 7 | 316236801 | Insulation,oven Door |
|
$ 58.59 | |||||
| 8 | 316088600 | Glass,oven Door ,inner |
|
$ 85.52 | |||||
| 9 | 316230616 | Liner,oven Door |
|
$ 90.72 | |||||
| 10 | 316001014 | Screw,waf Hd Sq `10-24 X 1.6 ,handle ,(2) |
|
Immediately | $ 47.03 | ||||
| 12 | 316239700 | Seal,oven Door |
|
Immediately | $ 152.43 | ||||
| 39 | 5304529996 | Handle,oven Door ,black (Replaces: 316248300) |
|
$ 156.11 | |||||
| 52 | 316491201 | Cap,door Trim ,black (Replaces: 316201005) |
|
$ 99.94 | |||||
| 10B | 316008401 | Washer,3/4 Od X 1/4 Id ,steel |
|
$ 11.34 | |||||
| 60B | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 316433600 | Label,anti-tip |
|
- | |||||
| NI | 5303271648 | Screw,wafer Hd Sq Dr ,8-18ab X 0.5 |
|
Immediately | $ 13.46 | ||||
| NI | 5303285179 | Screw,wafer Head `8-32t X 0.500 ,black |
|
$ 13.46 |
