SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Drawer Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
08 - Burner Parts
SELECT A DIAGRAM
New Model Search:

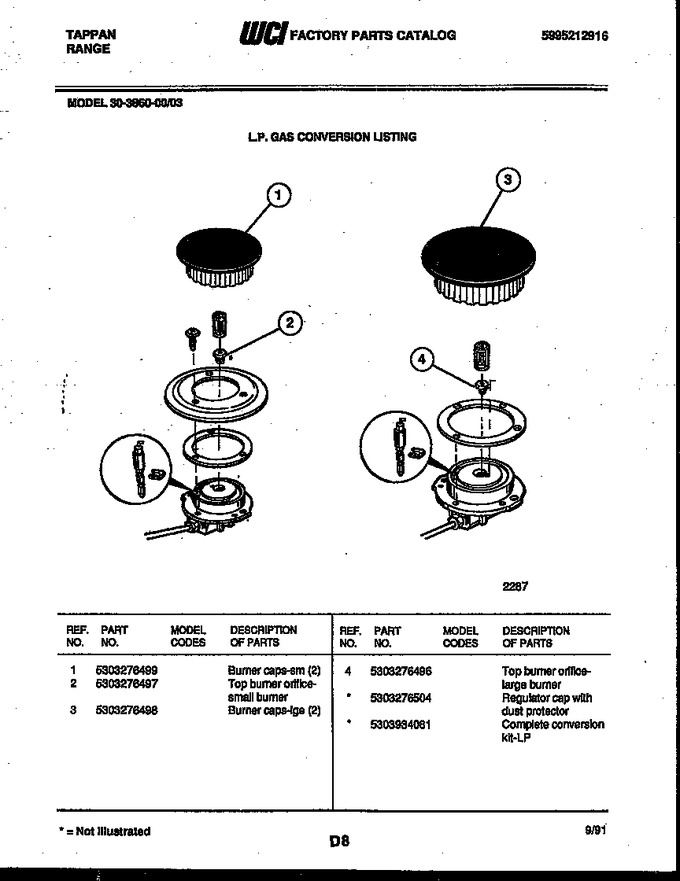

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303276499 | Burner Caps (sm 2) |
|
- | |||||
| 2 | 5303276497 | Top Burner Orifice Small Burner |
|
- | |||||
| 3 | 5303276498 | Burner Caps (lge 2) |
|
- | |||||
| 4 | 5303276496 | Top Burner Orifice-large Burner |
|
- | |||||
| *60319 | 5303934081 | Complete Conversion Kit L.p. |
|
- | |||||
| *60319 | 5303276504 | Regulator Cap With Dust Protector |
|
- |
