01 - Control Panel (orig. Rev. A-d)
02 - Cylinder & Drive (orig.-rev. A-d)

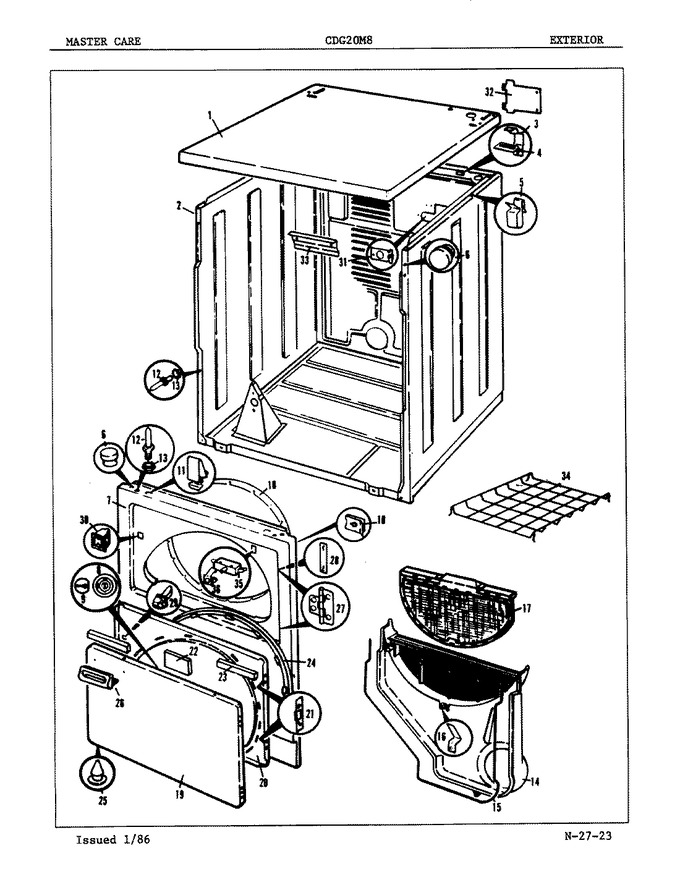

03 - Exterior (orig. Rev. A-d)
04 - Gas Carrying (orig. Rev. A-d)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 53-0124 | Cabinet Top |
|
- | |||||
| 2 | 53-0667 | Cabinet Asm |
|
- | |||||
| 3 | 63-5712 | Hinge, Cabinet Top |
|
- | |||||
| 4 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 4 | 33-0930 | Pad, Top Hinge |
|
- | |||||
| 5 | 25-3034 | Clip, Wiring |
|
- | |||||
| 6 | 33-2653 | Bumper, Cabinet |
|
- | |||||
| 7 | 53-0127 | Front Panel |
|
- | |||||
| 8 | 53-0155 | Plug, Gas Access (wht) |
|
- | |||||
| 8 | 53-0592 | Chrome Plug |
|
- | |||||
| 8 | 53-0161 | Plug, Gas Access (alm) |
|
- | |||||
| 9 | 53-0593 | Chrome Button |
|
- | |||||
| 9 | 53-0162 | Button, Gas Access (alm) |
|
- | |||||
| 9 | 53-0156 | Button, Gas Access (wht) |
|
- | |||||
| 10 | WP489478 | Screw, Front Panel To Cabinet (Replaces: 25-7820) |
|
$ 6.98 | |||||
| 10 | 25-7817 | Clip, U-type |
|
- | |||||
| 11 | WP25-7220 | Clip, Cabinet Top (Replaces: 25-7220) |
|
$ 10.77 | |||||
| 12 | 63-6148 | Pin, Locator |
|
- | |||||
| 13 | 53-0200 | Sleeve, Locator Pin |
|
- | |||||
| 13 | WP3400029 | Nut, Locator Pin (Replaces: 25-0224) |
|
Immediately | $ 6.98 | ||||
| 14 | 12001324 | Collector Duct (Replaces: 53-0917) |
|
$ 187.37 | |||||
| 14 | 489392 | Screw 8-18x1/2 Truss H (Replaces: 25-7810) |
|
$ 12.02 | |||||
| 15 | 53-0204 | Seal |
|
- | |||||
| 16 | 53-0123 | Clip |
|
- | |||||
| 17 | WP53-0918 | Filter, Lint (Replaces: 53-0918) | C |
|
Immediately | $ 84.45 | |||
| 17 | 53-0701 | Lint Screen |
|
$ 39.15 | |||||
| 18 | WP31001637 | Seal Assy (gray) (Replaces: 53-0282) |
|
$ 30.62 | |||||
| 19 | 53-0154 | Panel, Outer Door (wht) |
|
- | |||||
| 20 | 53-0104 | Inner Panel |
|
- | |||||
| 20 | 53-0740 | Inner Door | A |
|
- | ||||
| 21 | 53-0119 | Clip, Hinge |
|
- | |||||
| 22 | 53-0251 | Pad, Door |
|
- | |||||
| 23 | 53-0252 | Pad, Door |
|
- | |||||
| 24 | WP31001529 | Door Seal (Replaces: 53-0648) |
|
$ 115.24 | |||||
| 24 | 25-7770 | Screw, Outer To Inner Door |
|
- | |||||
| 25 | 25-3534 | Plug Button, Door |
|
- | |||||
| 26 | 489392 | Screw 8-18x1/2 Truss H (Replaces: 25-7810) |
|
$ 12.02 | |||||
| 26 | 53-0116 | Door Handle |
|
- | |||||
| 27 | 53-0122 | Hinge, Door |
|
- | |||||
| 28 | LA-1003 | Door Catch Kit (incl. 21 & 22) |
|
Immediately | $ 24.51 | ||||
| 28 | W10756178 | Screw, No.6-20 1/2 Flthd Torx (Replaces: 25-7809) |
|
$ 5.39 | |||||
| 28 | 53-0121 | Twin Nut |
|
- | |||||
| 29 | LA-1003 | Strike, Door (Replaces: 73-0033) |
|
Immediately | $ 24.51 | ||||
| 30 | LA-1003 | Door Catch (Replaces: 53-0882) |
|
Immediately | $ 24.51 | ||||
| 31 | WP489483 | Screw, No.10 Torq Limiting (Replaces: 25-7828) |
|
$ 9.78 | |||||
| 31 | 53-0135 | Support, Power Cord |
|
- | |||||
| 32 | 53-0136 | Cover, Supply Cord |
|
- | |||||
| 32 | W10124350 | Not Required Part Or See Note Screw- Purchase Locally |
|
- | |||||
| 33 | 53-0133 | Shield, Heat |
|
- | |||||
| 33 | WP12990527 | Screw, Sems (Replaces: 25-3457) |
|
Immediately | $ 7.15 | ||||
| 34 | 53-0772 | Rack, Drying |
|
- | |||||
| 34 | LA-1005 | Switch Kit (incl. 23 & 24) |
|
$ 31.33 | |||||
| 35 | 53-0148 | Switch, Door |
|
$ 22.49 | |||||
| 36 | WP31001319 | Clip, Switch (Replaces: 63-5990) |
|
$ 0.84 |
