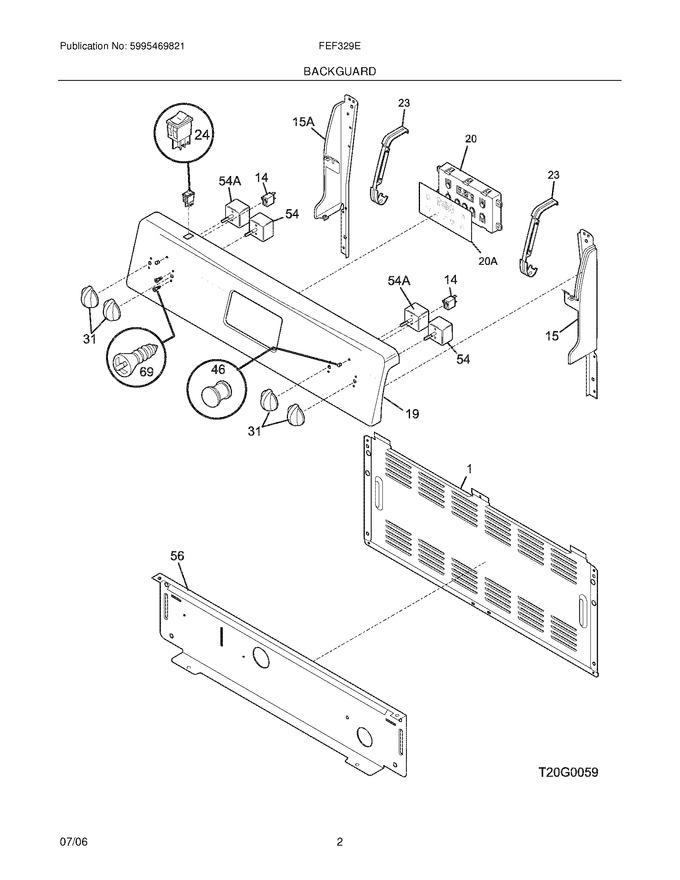

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15	316411407		Support,backguard ,bisque ,rh		Appelez-nous	-
19	316445205		Panel-backguard,bisque		Appelez-nous	-
23	316441600		Bracket-clock Mtg,black				$ 20.48
31	316223003		Knob,control ,bisque				$ 48.20
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
56	316234014		Shield,backguard ,bisque ,inner		Appelez-nous	-
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.12
15A	316411406		Support,backguard ,bisque ,lh				$ 90.30
20A	316220702		Overlay,clock ,bisque		Appelez-nous	-
F20	5304518660		Clock/timer,electronic ,es100   (Replaces: 316455400)			Immediately	$ 181.92
F24	316448702		Switch,rocker ,bisque ,oven Light		Appelez-nous	-
F54	316436000		Switch,infinite ,small Element			Immediately	$ 80.34
F54A	316436001		Switch,infinite ,large Element			Immediately	$ 51.68
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
