Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP12990527 Screw, Sems   (Replaces: 25-3457) In-Stock Immediately $ 7.15

1 53-1287 Control Panel Appelez-nous -
2 25-7702 Speedclip, End Cap To Ctrl Pnl Appelez-nous -
2 53-0265 Lh Endcap Appelez-nous -
2 35-2487 Cap, End (rt) C Appelez-nous -
2 53-0264 Rh Endcap Appelez-nous -
2 35-2488 Cap, End (lt) C Appelez-nous -
2 25-7793 Screw Appelez-nous -
3 25-7851 Speedclip, End Cap To Top Appelez-nous -
3 25-7697 Screw Appelez-nous -
4 25-7852 Speedclip, Rr Shld To End Cap Appelez-nous -
4 WP33002917 Screw   (Replaces: 25-7435) In-Stock Immediately $ 6.90

5 53-0278 Trim, End Cap (lt) Appelez-nous -
5 53-0277 Trim, End Cap (rt) Appelez-nous -
6 25-7760 Screw Appelez-nous -
7 25-7702 Speedclip, End Cap To Ctrl Pnl Appelez-nous -
8 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

9 53-1676 Shield, Control C Appelez-nous -
9 53-0365 Control Shield Appelez-nous -
10 WP12990527 Screw, Sems   (Replaces: 25-3457) In-Stock Immediately $ 7.15

10 35-2688 Shield, Control Panel (rear) C Appelez-nous -
10 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

10 53-0268 Rear Shield Appelez-nous -
11 53-1548 Timer B Appelez-nous -
11 53-0635 Timer Motor Appelez-nous -
11 53-1302 Timer Appelez-nous -
12 25-0205 Screw Appelez-nous -
13 35-2256 Selector Knob Appelez-nous -
14 53-0653 Knob Appelez-nous -
15 53-0344 Switch, Temperature Appelez-nous -
15 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

16 35-0145 Selector Knob Appelez-nous -
17 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

17 63-6731 Buzzer Appelez-nous -

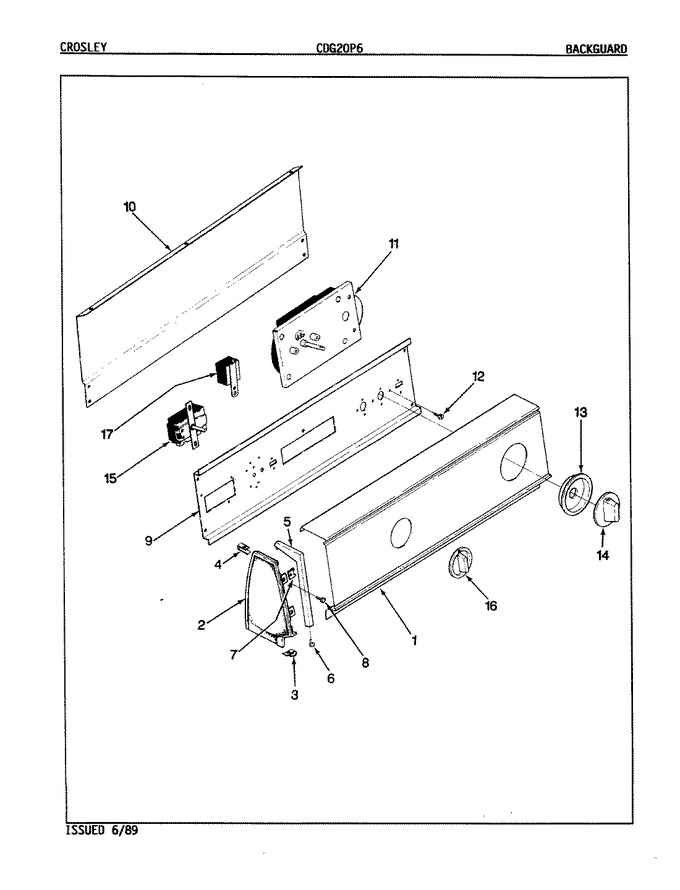

    View Diagram in Separate Window     Print Icon   Print Part List
