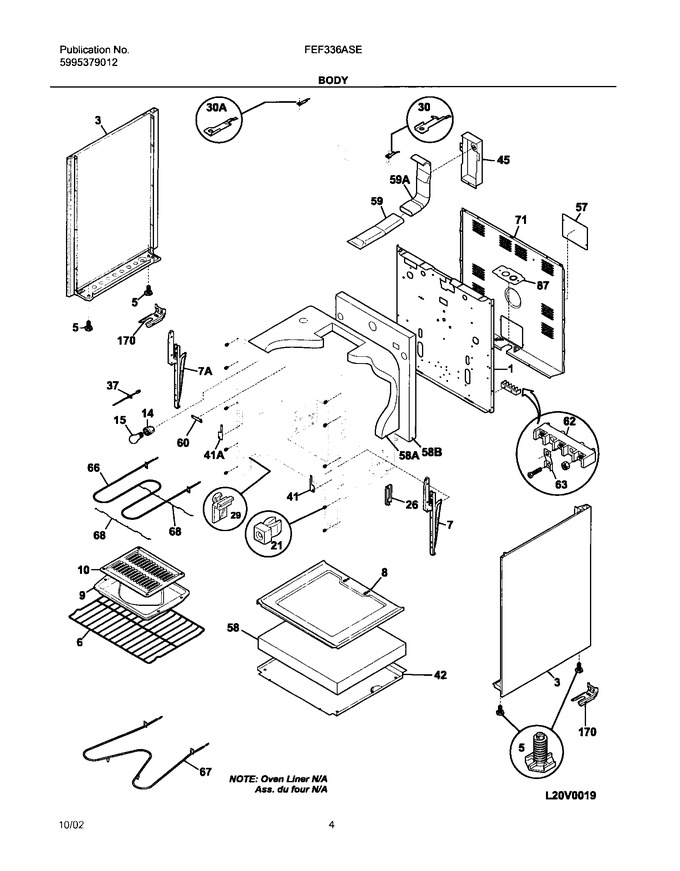

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316201300		Back,main		Appelez-nous	-
3	316230114		Panel,bodyside ,white ,rh		Appelez-nous	-
3	316230115		Panel,bodyside ,white ,lh		Appelez-nous	-
5	316129200		Screw,leveling ,plastic ,with Stop				$ 10.92
6	316067902		Rack,oven			Immediately	$ 103.10
7	316212908		Hinge,oven Door ,rh		Appelez-nous	-
8	3203540		Panel-oven Bottom		Appelez-nous	-
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
21	3014099		Spacer,bodyside				$ 3.62
26	316206300		Support,chassis ,(2)				$ 19.72
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
30	316217700		Bracket,hinge ,rh ,main Top				$ 13.42
41	316233400		Cover,hinge Cutout ,rh				$ 67.99
42	316206200		Shield,wool ,lower		Appelez-nous	-
45	316234100		Shield,wire ,vent Tube				$ 70.16
57	316081100		Cover,access		Appelez-nous	-
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
59	316208200		Tube,oven Vent ,lower		Appelez-nous	-
60	316239100		Cover,oven Front		Appelez-nous	-
63	5301145190		Plate,grounding Strap		Appelez-nous	-
66	316203200		Element-broil			Immediately	$ 164.45
67	316075103		Element-bake			Immediately	$ 42.36
68	316203400		Support,broil Element				$ 70.88
71	316015810		Shield-rear Wall,galv Steel		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
170	316112500		Template,anti-tip				$ 3.55
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
170	316112005		Anti-tip Kit,w/bracket,screw   (Replaces: 5303935180)			Immediately	$ 18.91
30A	316217701		Bracket,hinge ,lh ,main Top				$ 13.00
41A	316233500		Cover-hinge,cutout ,lh				$ 16.96
58A	316047707		Insulation, 1`` ,oven Wrapper				$ 150.92
58B	316054202		Insulation, 1`` ,oven Back				$ 76.59
59A	316208304		Tube,oven Vent ,upper   (Replaces: 316208302)				$ 80.09
7A	316212909		Hinge,oven Door ,lh		Appelez-nous	-
F14	316116400		Receptacle,oven Light			Immediately	$ 56.10
F37	316233903		Probe-oven Temp   (Replaces: 316233900)			Immediately	$ 57.29
F62	5303935061		Terminal Block Kit		Appelez-nous	-
NI	316073400		Plate,weight ,(3)		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	5308014215		Screw				$ 2.28
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
NI	316021131		Screw,bodyside ,8-18 X 11/16 ,white		Appelez-nous	-
NI	316253121		Wiring Harness,main		Appelez-nous	-
NI	3203550		Plug,button ,oven Bottom			Immediately	$ 15.22
