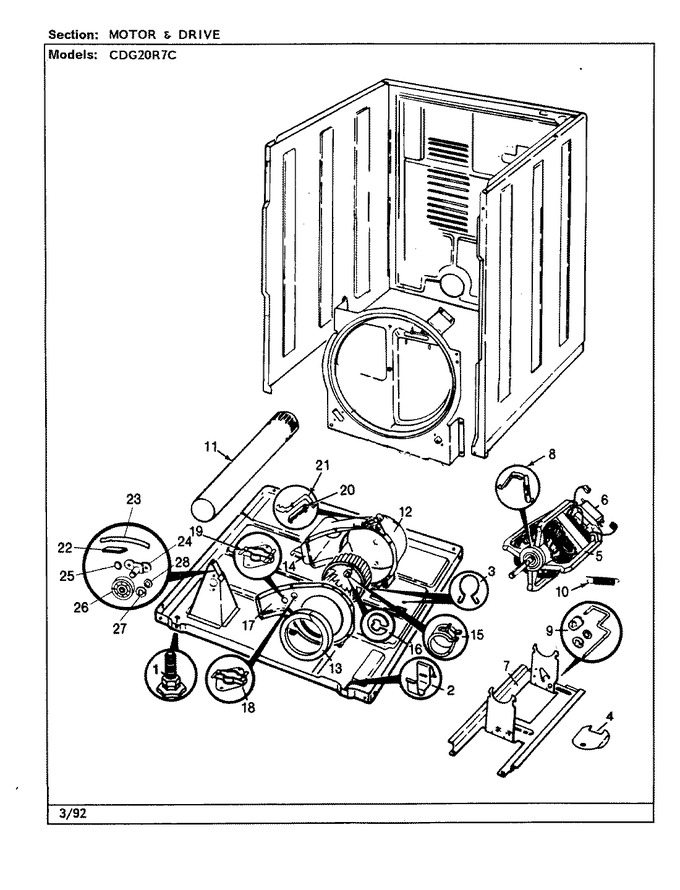

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel
02 - Door
03 - Gas Carrying
04 - Motor & Drive
05 - Tumbler
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11117769 | Leg, Leveling (Replaces: 63-5519) |
|
Immediately | $ 16.61 | ||||
| 2 | 53-0120 | Clip, Front Panel |
|
$ 11.32 | |||||
| 3 | 16515 | Clip, Wiring (Replaces: 25-7027) |
|
$ 17.60 | |||||
| 4 | WP90767 | Screw (Replaces: 25-7741) |
|
Immediately | $ 7.04 | ||||
| 4 | 53-0153 | Shield, Wiring |
|
- | |||||
| 5 | 53-1041 | Motor Asm |
|
- | |||||
| 6 | 53-0936 | Motor |
|
- | |||||
| 7 | 25-7811 | Screw |
|
- | |||||
| 7 | 53-0852 | Motor Bracket |
|
- | |||||
| 8 | WP660658 | Clamp, Motor (Replaces: 53-0214) |
|
$ 7.05 | |||||
| 8 | 25-7674 | Screw |
|
- | |||||
| 9 | 53-1650 | Idler Assy |
|
- | |||||
| 10 | 53-1648 | Idler Spring |
|
- | |||||
| 11 | WP90767 | Screw (Replaces: 25-2134) |
|
Immediately | $ 7.04 | ||||
| 11 | 53-0134 | Duct, Exhaust |
|
- | |||||
| 12 | 53-0774 | Blower Housing |
|
- | |||||
| 13 | 53-1023 | Blower Cover |
|
- | |||||
| 13 | 12001324 | Seal, Blower Housing (Replaces: 53-0203) |
|
$ 187.37 | |||||
| 14 | 53-0106 | Blower Wheel |
|
$ 58.02 | |||||
| 15 | WP312967 | Clamp (Replaces: 25-7823) |
|
Immediately | $ 10.68 | ||||
| 16 | 25-7855 | Ring, Retaining |
|
$ 8.67 | |||||
| 17 | WP90767 | Screw (Replaces: 25-2134) |
|
Immediately | $ 7.04 | ||||
| 17 | 53-1026 | Guide, Vane Inlet |
|
- | |||||
| 17 | WP33002917 | Screw (Replaces: 25-7807) |
|
Immediately | $ 6.90 | ||||
| 17 | 53-1023 | Blower Cover |
|
- | |||||
| 18 | WP53-1107 | Thermostat, Control (146/121) (Replaces: 53-1107) |
|
$ 81.25 | |||||
| 19 | WP90767 | Screw (Replaces: 25-2134) |
|
Immediately | $ 7.04 | ||||
| 19 | W10124350 | Not Required Part Or See Note Not Required |
|
- | |||||
| 20 | WP31001356 | Rh Gld Cushion (Replaces: 53-0182) |
|
$ 76.16 | |||||
| 21 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 21 | WP31001469 | Rh Cyl Glide (Replaces: 53-0183) |
|
$ 66.66 | |||||
| 22 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 23 | LA-1008 | Rr Roller Kit |
|
$ 66.73 | |||||
| 23 | W10124350 | Not Required Part Or See Note |
|
- | |||||
| 24 | 53-0198 | Support Asm |
|
- | |||||
| 25 | 25-7813 | Spacer |
|
- | |||||
| 26 | 53-0642 | Cyl Roller |
|
- | |||||
| 27 | WP25-7854 | Ring, Retaining (Replaces: 25-7854) |
|
$ 10.68 | |||||
| 28 | 25-7814 | Washer |
|
$ 5.33 |
