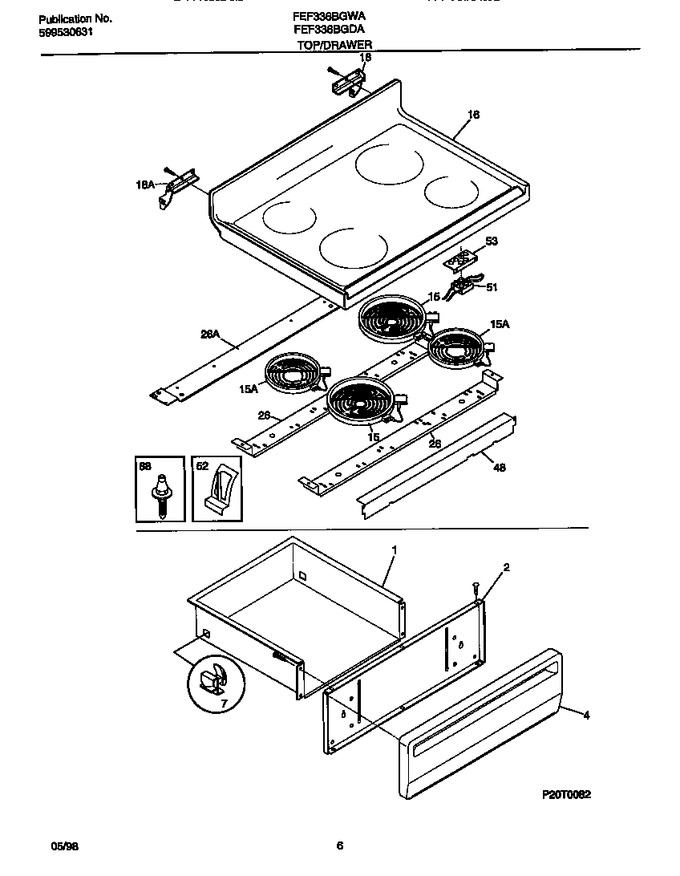

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316084406		Panel-drawer, Almond		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
16	316098104		Main Top, Smooth Top, Almond		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
26	316099201		Bracket-support, Chassis		Appelez-nous	-
26	316099101		Channel-support, Element, (2)		Appelez-nous	-
48	316100200		Shield-wire, Main Top		Appelez-nous	-
51	316105100		Light-indicator,hot Surface ,assy ,(1)		Appelez-nous	-
52	316099400		Clip-spring, Element Mtg, (8)				$ 29.56
53	316099300		Bracket-indicator Light, Hot Surface, 4 Hole		Appelez-nous	-
60	316089500		Screw, 10-16 X .486, Safety Valve, Handle, (4)				$ 13.46
88	316099500		Pin,guide ,(2)				$ 6.53
*73056	316021113		Screw-drawer Pnl		Appelez-nous	-
*73057	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*73058	316519700		Screw,cup Pt ,8-18 X 3/8 ,hinge ,ind Lght Brkt,manifold   (Replaces: 316021108)				$ 10.02
*73059	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-
*73060	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*73061	5309951550		Cleaner-cooktop		Appelez-nous	-
15A	318198817		Element-surface,radiant ,small/6 Inch ,1200w,(2) ,limitsw Incl   (Replaces: 316010203)			Immediately	$ 192.78
15B	318198834		Element-surface,radiant ,large/8 Inch/rf,2100w ,(1) ,limit Sw Incl   (Replaces: 316010204)				$ 205.36
18A	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18B	5303288420		Hinge-main Top,(2)		Appelez-nous	-
