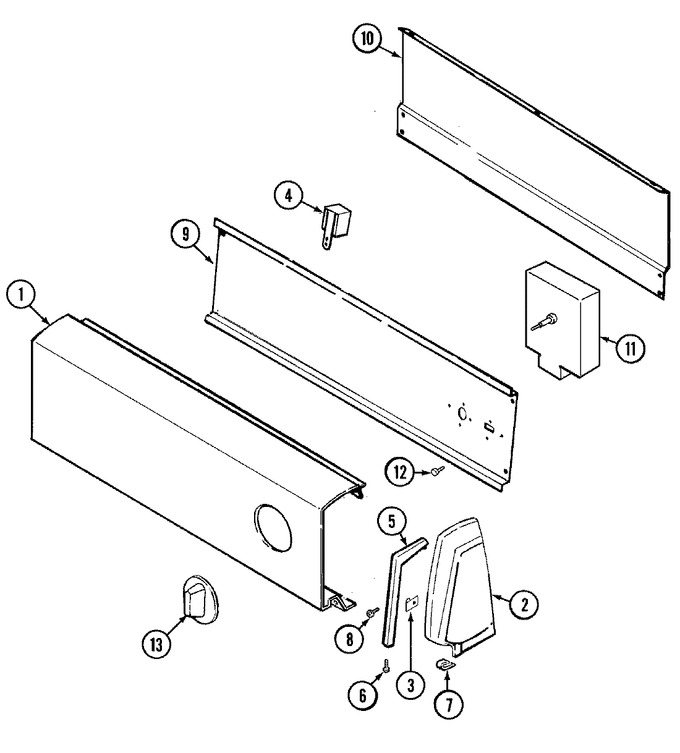

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet
02 - Control Panel
03 - Door
04 - Gas Carrying
05 - Motor & Drive
06 - Tumbler
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31001157 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 2 | 35-2668 | Cap, End (rt)(wht) | 10 |
|
- | ||||
| 2 | 35-2669 | Cap, End (lt)(wht) | 10 |
|
- | ||||
| 3 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | 10 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 4 | 53-1639 | Buzzer Assy. | 10 |
|
- | ||||
| 5 | 31001054 | Trim, Endcap (rt Wht) | 10 |
|
- | ||||
| 5 | 31001055 | Trim, Endcap (lt Wht) | 10 |
|
- | ||||
| 6 | 25-7760 | Screw | 10 |
|
- | ||||
| 7 | 25-7851 | Speedclip, End Cap To Top | 10 |
|
- | ||||
| 8 | 25-7649 | Screw | 10 |
|
- | ||||
| 9 | 31001128 | Shield, Control | 10 |
|
- | ||||
| 9 | 31001146 | Pad, Control Panel Support | 10 |
|
- | ||||
| 10 | 35-2688 | Shield, Control Panel (rear) | 10 |
|
- | ||||
| 11 | 53-1758 | Timer | 10 |
|
- | ||||
| 12 | WP90767 | Screw (Replaces: 31001119) | 10 |
|
Immediately | $ 7.04 | |||
| 13 | 53-2575 | Timer Knob | 10 |
|
$ 32.96 | ||||
| NI | 31001179 | Manual, Use & Care | 10 |
|
- |
