01 - Cabinet
02 - Control Panel
03 - Cylinder
04 - Door
05 - Gas Carrying
06 - Motor & Drive
07 - Supplemental Information
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:

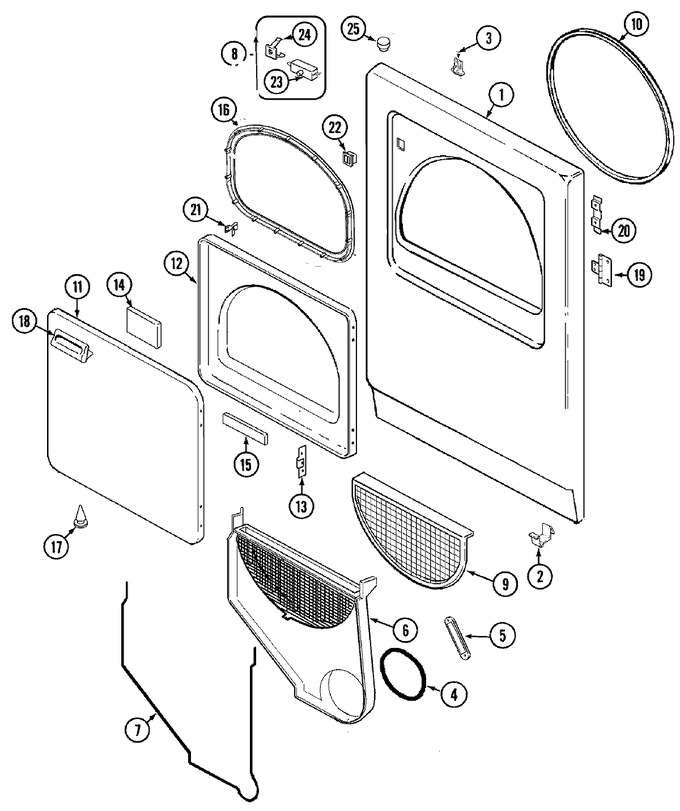

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 53-0726 | Panel, Front (wht) | 10 |
|
- | ||||
| 2 | 53-0120 | Clip, Front Panel | 10 |
|
$ 11.32 | ||||
| 3 | 31001526 | Lock, Top | 10 |
|
$ 6.59 | ||||
| 4 | 31001541 | Seal, Blower/collector Duct | 10 |
|
$ 24.55 | ||||
| 5 | 33001809 | Sensor Bar Assy. | 10 |
|
- | ||||
| 5 | 31001558 | Lead Assembly (sensor) | 10 |
|
- | ||||
| 6 | 489392 | Screw 8-18x1/2 Truss H (Replaces: 25-7810) | 10 |
|
$ 12.02 | ||||
| 6 | 12001324 | Duct Kit, Collector | 10 |
|
$ 187.37 | ||||
| 7 | 53-0204 | Seal | 10 |
|
- | ||||
| 8 | W10124350 | Not Required Part Or See Note | 14 |
|
- | ||||
| 8 | LA-1005 | Switch Kit (incl. 23 & 24) | 10 |
|
$ 31.33 | ||||
| 9 | WP53-0918 | Filter, Lint (Replaces: 53-0918) | 10 |
|
Immediately | $ 84.45 | |||
| 10 | WP31001637 | Seal Assembly, Cyl Front (Replaces: 31001637) | 10 |
|
$ 30.62 | ||||
| 11 | WP3196557 | Screw, 8-18x3/8 Tyab But (Replaces: 25-7752) | 10 |
|
Immediately | $ 7.16 | |||
| 11 | 53-0154 | Panel, Outer Door (wht) | 10 |
|
- | ||||
| 12 | 53-0912 | Panel, Inner Door (wht) | 10 |
|
- | ||||
| 13 | 53-0119 | Clip, Hinge | 10 |
|
- | ||||
| 14 | 53-1490 | Door Pad | 10 |
|
- | ||||
| 15 | 53-1491 | Door Pad | 10 |
|
- | ||||
| 16 | WP31001529 | Seal, Door (Replaces: 31001529) | 10 |
|
$ 115.24 | ||||
| 17 | 25-7889 | Plug Button | 10 |
|
- | ||||
| 18 | 489392 | Screw 8-18x1/2 Truss H (Replaces: 25-7810) | 10 |
|
$ 12.02 | ||||
| 18 | 53-0927 | Handle, Door (wht) | 10 |
|
$ 36.55 | ||||
| 19 | 53-1492 | Hinge, Dryer Door | 10 |
|
- | ||||
| 19 | W10756178 | Screw, No.6-20 1/2 Flthd Torx (Replaces: 25-7809) | 10 |
|
$ 5.39 | ||||
| 20 | 53-0121 | Twin Nut | 10 |
|
- | ||||
| 20 | WP98006631 | Screw,8-18x1/2 Torx T10 (Replaces: 31001786) | 10 |
|
$ 6.26 | ||||
| 21 | LA-1003 | Strike, Door (Replaces: 53-2364) | 10 |
|
Immediately | $ 24.51 | |||
| 22 | LA-1003 | Catch, Door (Replaces: 53-0187) | 10 |
|
Immediately | $ 24.51 | |||
| 23 | 31001732 | Switch, Door | 14 |
|
- | ||||
| 23 | 53-0148 | Switch, Door | 10 |
|
$ 22.49 | ||||
| 24 | WP31001319 | Clip, Switch (Replaces: 31001319) | 10 |
|
$ 0.84 | ||||
| 24 | 31001733 | Clip, Switch | 14 |
|
$ 6.41 | ||||
| 25 | 33-2653 | Bumper, Cabinet | 10 |
|
- |
