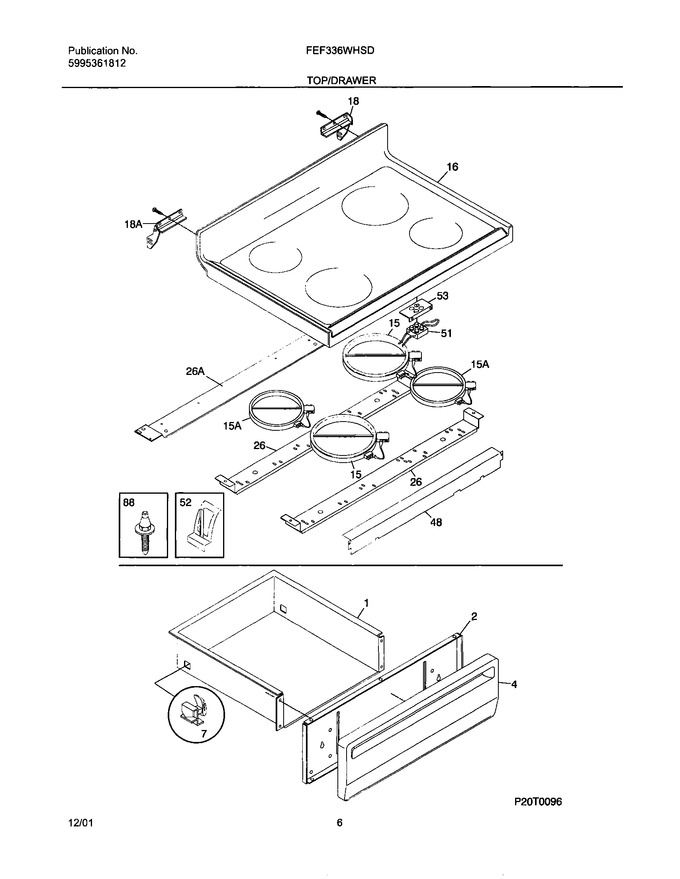

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011503		Drawer				$ 131.51
2	5303288582		Liner,drawer ,galv Steel ,front Panel		Appelez-nous	-
4	316084405		Panel-drawer, White		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316098105		Main Top, White		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
26	316099100		Channel,element Support ,galv Steel ,(2)		Appelez-nous	-
48	316100200		Shield-wire, Main Top		Appelez-nous	-
51	316105100		Light/lamp,hot Surface Ind ,assy		Appelez-nous	-
52	316099400		Clip,element Mtg				$ 29.56
53	316099300		Bracket,indicator Light		Appelez-nous	-
88	316099500		Pin,guide ,(2)				$ 6.53
18A	5303273063		Hinge-main Top (lh)				$ 48.41
26A	316099200		Bracket,chassis Support ,rear		Appelez-nous	-
F15	318198817		Element,surface ,6`` ,1200 W ,radiant   (Replaces: 316010205)			Immediately	$ 192.78
F15A	318198834		Element,surface ,8`` ,2200 W ,radiant   (Replaces: 316010206)				$ 205.36
NI	316021109		Screw,8-18 X 0.500 ,white   (Replaces: 316021112)			Immediately	$ 27.50
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	5308014215		Screw				$ 2.28
NI	316001746		Wiring Harness,surface Element ,incl Ind Light		Appelez-nous	-
NI	316045000		Clip,wiring Harness ,green ,main Top		Appelez-nous	-
NI	316112101		Cleaner,cooktop		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
