SELECT A DIAGRAM

01 - Cover

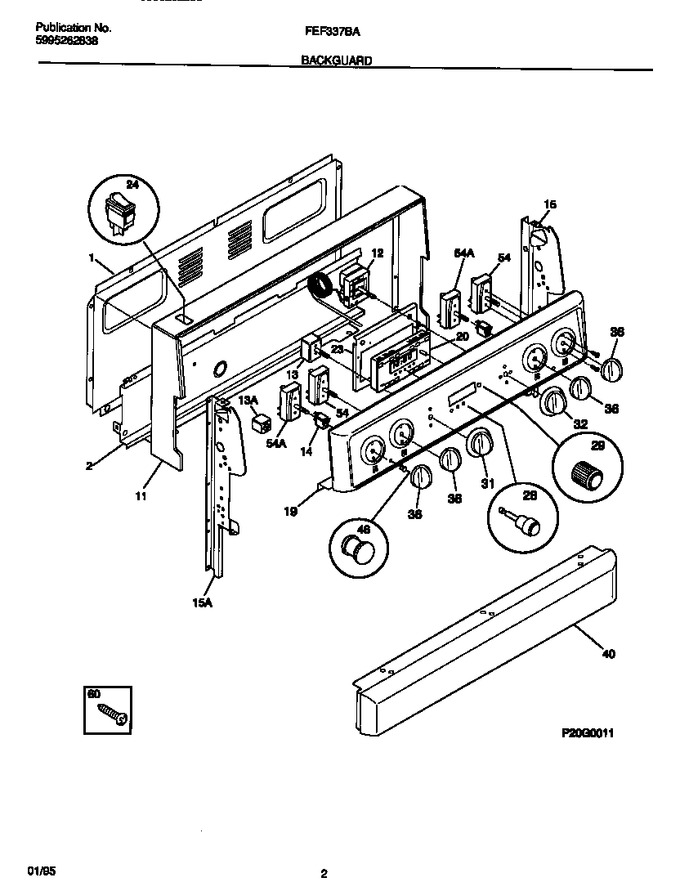

02 - Backguard


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
1	316029410		Back-main		Appelez-nous	-
1	316075201		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015905		Shield-backguard, Inner		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
3	316081006		Panel, Bodyside, Almond, Rh		Appelez-nous	-
3	316067802		Trim-oven Door		Appelez-nous	-
3	316081007		Panel-bodyside, Almond, Lh (not Illustrated)		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	3051152		Glass-oven Door, Black, Outer		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
6	5304531722		Rack-oven   (Replaces: 316067901)			Immediately	$ 51.05
6	5303210608		Shield-insulation, Black		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
7	316007001		Hinge,oven Door ,(2)				$ 234.55
8	316050303		Glass-oven Door, Inner		Appelez-nous	-
8	3203540		Panel-oven Bottom		Appelez-nous	-
9	316066603		Liner-oven Door		Appelez-nous	-
9	316073800		Pan-broiler		Appelez-nous	-
10	316073900		Insert-broiler Pan		Appelez-nous	-
10	316001002		Screw-oven Door, Washer Head, 10-24 X 1.81				$ 14.89
11	5303015373		Cover-door Liner		Appelez-nous	-
11	316061807		Trim-wrapper, Black		Appelez-nous	-
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
12	316032400		Thermostat, Oven, Non Sc		Appelez-nous	-
13	5303291407		Switch-pulsar, Cycling		Appelez-nous	-
13	316032801		Switch-selector		Appelez-nous	-
14	3014073		Socket-light/lamp, Oven		Appelez-nous	-
14	316022503		Light-lamp, Indicator, 250 V			Immediately	$ 70.16
15	318198817		Element, Surface, Coil, Small/6 Inch, W/limit Switch   (Replaces: 316010200)			Immediately	$ 192.78
15	316023110		Support-backguard, Rh		Appelez-nous	-
15	316023111		Support-backguard, Lh		Appelez-nous	-
15	5303305628		Limiter Switch, Small/6 Inch (not Illustrated)		Appelez-nous	-
15	40A15		Light Bulb/lamp   (Replaces: 5303013071)			Immediately	$ 1.98
16	316035506		Main Top Assy, Glass/steel, Enamel, Almond		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
19	316024406		Panel-control, Metal		Appelez-nous	-
20	316045500		Clock/timer, Electronic		Appelez-nous	-
21	3014099		Spacer-bodyside, (8)				$ 3.62
23	316033203		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker Type, Black, (2)   (Replaces: 316005602)			Immediately	$ 11.38
27	5303284616		Clip-thermo Bulb				$ 9.86
28	3131730		Button-clock, Black		Appelez-nous	-
28	316045000		Clip-wire		Appelez-nous	-
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
29	5303271133		Knob-clock, Black		Appelez-nous	-
30	5303283574		Bracket-hinge, Main Top Rh		Appelez-nous	-
30	5303283575		Bracket-hinge, Main Top, Lh		Appelez-nous	-
31	316054906		Knob-selector		Appelez-nous	-
32	316054900		Knob-thermostat		Appelez-nous	-
36	316025100		Knob-control, Infinite Sw		Appelez-nous	-
39	5304529996		Handle-door, Black, Oven   (Replaces: 316060200)				$ 156.11
39	316026100		Handle-drawer, Black		Appelez-nous	-
40	316025800		Panel-manifold		Appelez-nous	-
41	3131570		Cover Hinge Cutout				$ 7.35
44	3131903		Bumper				$ 55.36
45	316066101		Shield-wire, S/t Vent		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
57	3203405		Cover-access		Appelez-nous	-
58	3203541		Insulation, Oven Back		Appelez-nous	-
58	3017142		Insulation, Oven Wrapper				$ 193.50
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
59	316073603		Tube-oven Vent		Appelez-nous	-
59	316023601		Tube-oven Vent, Upper		Appelez-nous	-
59	316040100		Bracket-mounting, Vent Tube (not Illustrated)		Appelez-nous	-
60	5303015372		Cover-oven Front		Appelez-nous	-
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
62	5303935061		Terminal Block		Appelez-nous	-
63	5303212739		Plate-ground Strap		Appelez-nous	-
66	5303051140		Element-broil				$ 202.71
67	316075100		Element, Bake		Appelez-nous	-
68	316075300		Support-element		Appelez-nous	-
71	316015803		Shield, Rear Wall, Rear Wall		Appelez-nous	-
82	3200825		Shield, Oven Bottom		Appelez-nous	-
87	5303206618		Bracket-cable Mtg		Appelez-nous	-
*80000	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*80001	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*80002	N/A		Wiring Harnesses Are Not Available For This Model		Appelez-nous	-
*80003	3203550		Plug-button			Immediately	$ 15.22
*80004	316001713		Harness-top Elements		Appelez-nous	-
*80005	316034800		Light/lamp, Ind, Hot Surface		Appelez-nous	-
*80006	316035700		Lens-light/lamp, Indicator		Appelez-nous	-
*80007	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*80008	5309951550		Cleaner-cooktop		Appelez-nous	-
*80009	316071600		Plate Warning/caution		Appelez-nous	-
*80010	5303212671		Screw, Cr Pan Hd Sems, 8, 32(bp) X 1		Appelez-nous	-
*80011	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
15A	318198834		Element-surface, Coil, Large / 8 Inch, W/limit Switch   (Replaces: 316010202)				$ 205.36
15B	5303305629		Limiter Switch, Large/8 Inch (not Illustrated)		Appelez-nous	-
36A	316033609		Panel, Element Mtg, Glass Top		Appelez-nous	-
36B	316023301		Clip-spring, Element Mtg, (4) (not Illustrated)		Appelez-nous	-
36C	316041001		Stud-index, Top Element (not Illustrated)		Appelez-nous	-
5A	5303203397		Screw-leveling				$ 14.49
5B	3934058		Anti, Tip Kit (not-illustrated)				$ 98.75
5C	316116000		Screw, Anti, Tip, (4) (not-illustrated)   (Replaces: 316078600)				$ 12.89
5D	5303288460		Nut, T,type, Leveling Screw (not Illustrated)				$ 27.14

    View Diagram in Separate Window       Print Part List
