SELECT A DIAGRAM

02 - Backguard


03 - Burner


04 - Body

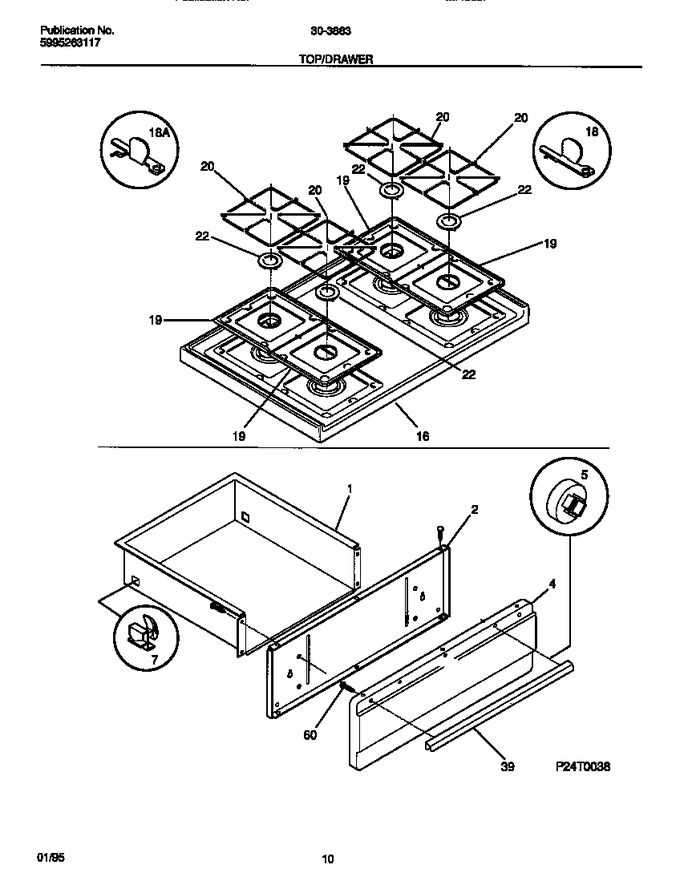

05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316010408		Main Top, White		Appelez-nous	-
18	5303288567		Screw, 8-18 X 3/8, (4) (not Illustrated)		Appelez-nous	-
18	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
19	316011401		Pan-burner				$ 20.58
20	318228310		Grate (4)   (Replaces: 5303269632)			Immediately	$ 22.91
22	316010901		Cap-burner, Black, (4)				$ 69.01
39	3201268		Handle-drawer, Brushed Chrome		Appelez-nous	-
60	5303281651		Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2		Appelez-nous	-
*74728	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
16A	5303271891		Gusset-top Mtg, Rh (not Illustrated)		Appelez-nous	-
16B	5303271892		Gusset-top Mtg, Lh (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
