SELECT A DIAGRAM

01 - Cover

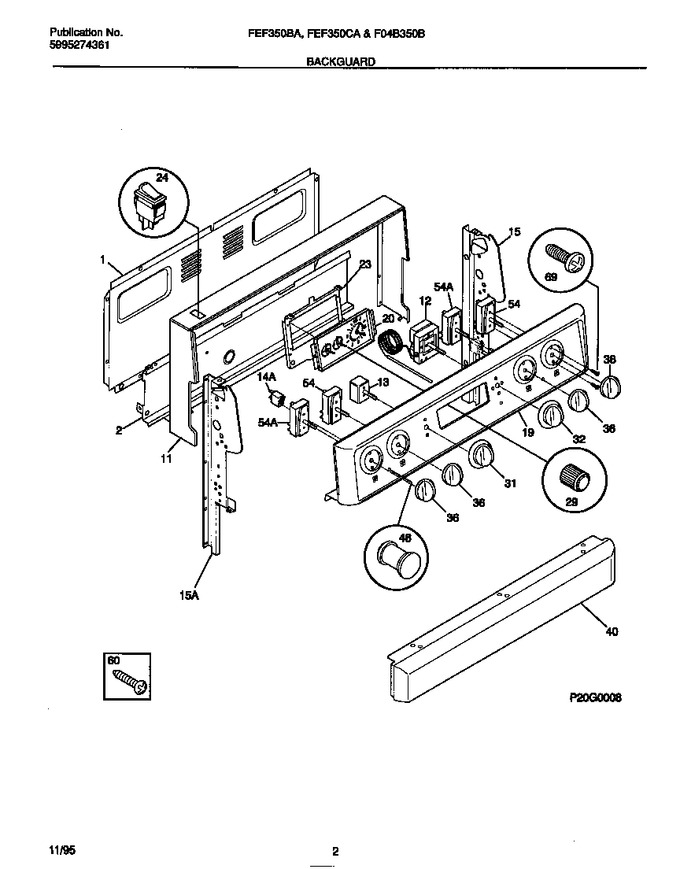

02 - Backguard


03 - Body


04 - Top/drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316061841		Trim-wrapper, Black		Appelez-nous	-
12	316021400		Thermostat-oven		Appelez-nous	-
13	316023200		Switch-selector				$ 176.44
14	316022503		Light-lamp, Indicator, 250 V			Immediately	$ 70.16
15	316023111		Support-backguard, Lh		Appelez-nous	-
15	316023110		Support-backguard, Rh		Appelez-nous	-
19	316024400		Panel-control, Metal		Appelez-nous	-
20	316017404		Clock/timer, Analog 3 Stem		Appelez-nous	-
23	316033203		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker Type, Black   (Replaces: 316005602)			Immediately	$ 11.38
29	316029000		Knob-clock		Appelez-nous	-
31	316054908		Knob-selector		Appelez-nous	-
32	316054902		Knob-thermostat		Appelez-nous	-
36	316025100		Knob-control, Infinite Sw		Appelez-nous	-
40	316025800		Panel-manifold		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
54	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
69	5303292005		Screw-switch Mtg, 8-32 X 5/32, (2)		Appelez-nous	-
*11720	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*11721	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
