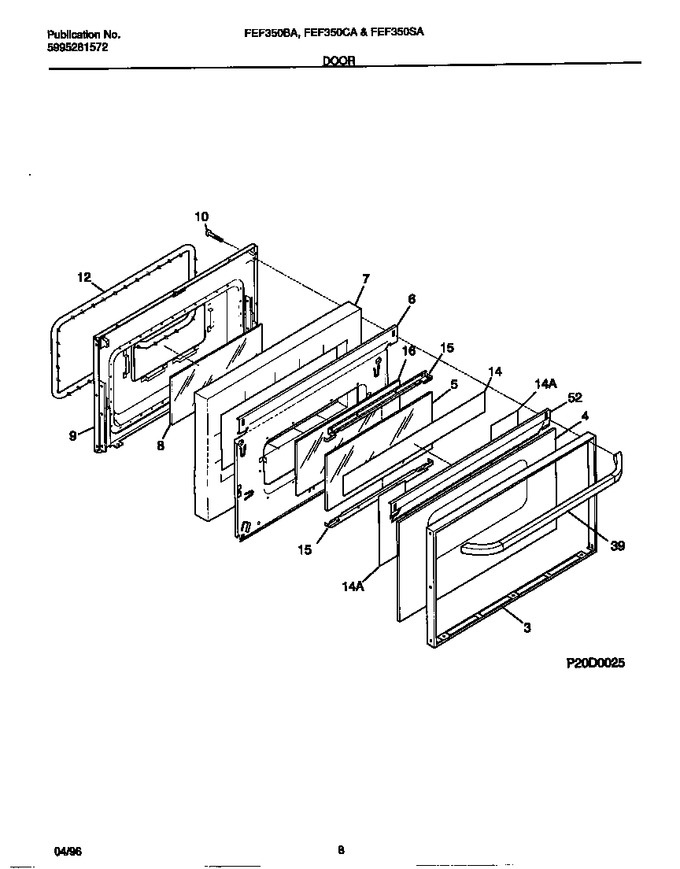

05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim-oven Door		Appelez-nous	-
4	316089000		Glass-oven Door, Outer		Appelez-nous	-
5	316088600		Glass,oven Door ,inner				$ 85.52
6	316088401		Shield-wool		Appelez-nous	-
7	316439802		Insulation, Oven Door   (Replaces: 316076400)			Immediately	$ 192.78
8	316088700		Glass-oven Door, Inner				$ 70.17
9	316066610		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
12	5303131601		Seal-oven Door				$ 374.63
14	5303208656		Reflector, Aluminum Foil		Appelez-nous	-
14	5303208655		Reflector, Aluminum Foil, (2)		Appelez-nous	-
15	316081401		Bracket-glass Mtg		Appelez-nous	-
16	316085700		Glass-oven Door, Heat Barrier		Appelez-nous	-
39	5304529996		Handle-door, Black, Oven   (Replaces: 316060200)				$ 156.11
52	316081303		Shield-oven Door, Black, Top		Appelez-nous	-
*38571	316055101		Spacer-handle, Black, (2)				$ 38.06
*38573	316065301		Plate Warning/caution		Appelez-nous	-
*38574	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*38575	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*38576	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*38577	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
*38578	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
