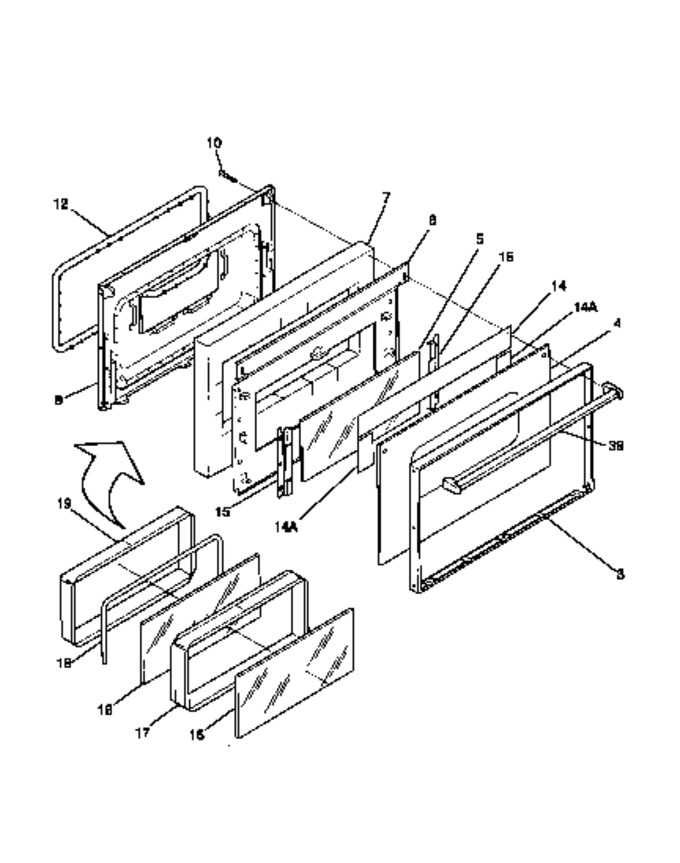

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067803		Trim-oven Door, Almond		Appelez-nous	-
4	316019712		Glass-oven Door, Almond, Outer		Appelez-nous	-
5	5303209513		Glass-oven Door, Inner		Appelez-nous	-
6	5303291032		Shield-insulation, Almond		Appelez-nous	-
7	316439802		Insulation, Oven Door   (Replaces: 316076400)			Immediately	$ 192.78
9	316066603		Liner-oven Door		Appelez-nous	-
10	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
12	5303131601		Seal-oven Door				$ 374.63
14	3131360		Reflector, Aluminum Foil		Appelez-nous	-
14	3131361		Reflector, Aluminum Foil		Appelez-nous	-
15	5303209510		Bracket-glass Mtg		Appelez-nous	-
16	5303209512		Glass-oven Door, Heat Barrier, (2)				$ 150.41
17	5303209517		Spacer-glass		Appelez-nous	-
18	5303211085		Seal-rope, 0.25 Dia				$ 44.00
19	316067600		Collar-glass Mtg		Appelez-nous	-
39	316060202		Handle-door, Almond, Oven		Appelez-nous	-
*70170	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*70171	316065300		Plate Warning/caution		Appelez-nous	-
*70172	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*70173	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*70174	5303271648		Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2			Immediately	$ 13.46
*70175	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*70176	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
*70177	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
