01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Ice & Water Dispenser


06 - Ice Maker & Bin


07 - Shelves & Accessories


08 - Unit Compartment & System

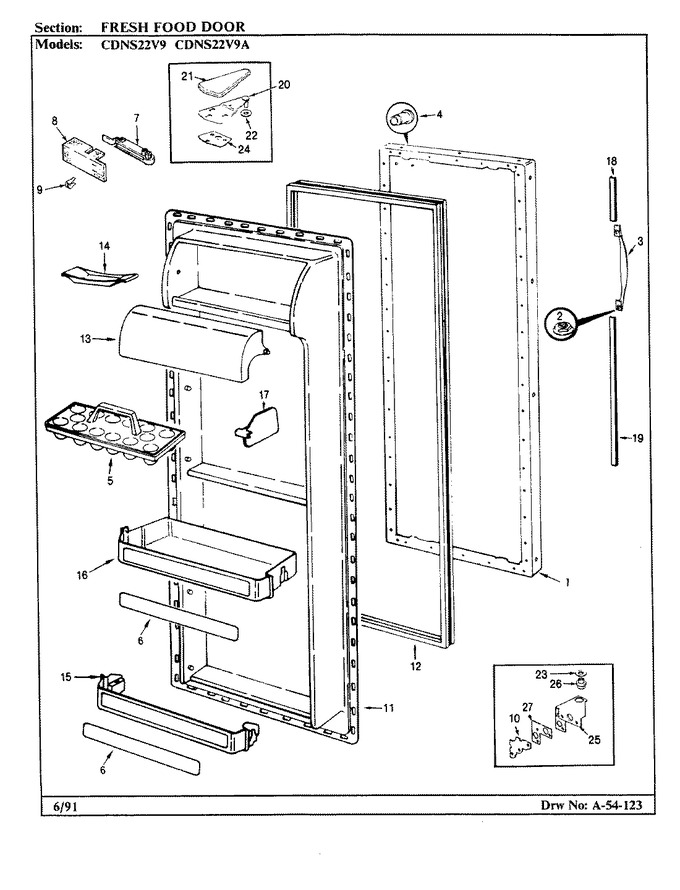

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95060-1		Insulation Kit		Appelez-nous	-
1	69030-4-AM		Panel, F.f. Door (alm)		Appelez-nous	-
2	434003-506		Fastener		Appelez-nous	-
4	29356-1		Retainer, Nameplate		Appelez-nous	-
5	60066-9		Tray, Egg		Appelez-nous	-
6	68121-34		Insert		Appelez-nous	-
7	54485-1		Closer, Door		Appelez-nous	-
8	52613-1		Insulation, Closer		Appelez-nous	-
9	52614-1		Bracket, Closer		Appelez-nous	-
9	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
10	65275-10		Screw, Tapping Plate		Appelez-nous	-
10	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
11	9986-12		Screw,door Liner		Appelez-nous	-
11	65943-7		Liner, Door		Appelez-nous	-
12	53712-16		Gasket		Appelez-nous	-
13	66184-446		Door, Dairy		Appelez-nous	-
14	29936-2		Tray, Butter		Appelez-nous	-
15	65781-6		Shelf Front		Appelez-nous	-
16	65782-6		Shelf, Pick-off		Appelez-nous	-
17	66645-2		Organizer		Appelez-nous	-
19	68614-4		Trim, Handle Extension		Appelez-nous	-
20	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
20	53709-22		Hinge, Upper		Appelez-nous	-
21	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
22	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
23	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
24	65031-1		Shim, Upper Hinge		Appelez-nous	-
25	65275-51		Screw, Lower Hinge		Appelez-nous	-
25	68975-2		Hinge, Lower		Appelez-nous	-
25	403100-1		Screw		Appelez-nous	-
26	68977-1		Pin, Hinge		Appelez-nous	-
27	69031-1		Shim		Appelez-nous	-
NI	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
