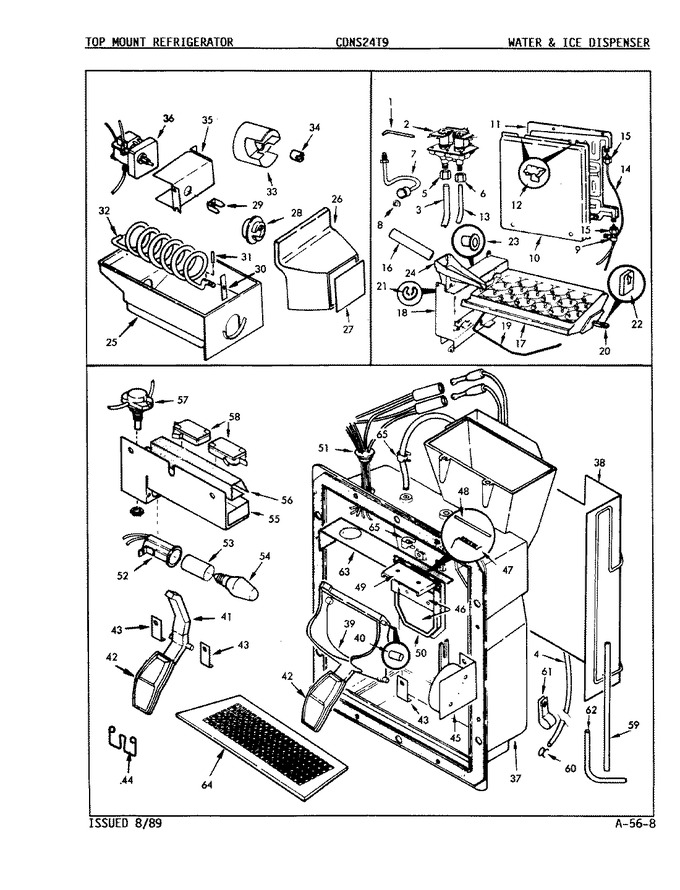

01 - Freezer Compartment


02 - Fresh Food Door


03 - Water & Ice Dispenser


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
1	66758-1		Feeder Tube		Appelez-nous	-
2	56595-3		Valve, Water		Appelez-nous	-
3	55603-10		Tubing		Appelez-nous	-
4	WPB5705307		Tubing, Fountain   (Replaces: 55602-7)				$ 11.19
5	55604-1		Nut, Compression (5/16``)		Appelez-nous	-
6	WP627018		Nut, Compression (1/4``)   (Replaces: 55419-1)				$ 9.87
7	53760-2		Inlet Tubing Assy.		Appelez-nous	-
8	24685-5		Washer, Inlet Tubing Nut		Appelez-nous	-
8	24685-1		Nut, Inlet Tubing		Appelez-nous	-
9	W10833902		Clamp, Tubing   (Replaces: 53516-8)				$ 9.89
10	59843-2		Tank Cover		Appelez-nous	-
11	400027-1		Screw		Appelez-nous	-
11	62920-1		Tank, Water		Appelez-nous	-
12	62082-1		Clip, Water Tank Mounting		Appelez-nous	-
13	WPB5705307		Tube   (Replaces: 55602-9)				$ 11.19
14	WPB5705307		Tube   (Replaces: 55602-5)				$ 11.19
15	WP627018		Nut, Compression (1/4``)   (Replaces: 55419-1)				$ 9.87
16	58461-4		Tube, Fill		Appelez-nous	-
17	WP59688-1A		Tray, Ice   (Replaces: 59688-1)				$ 18.71
18	RA43714-8		Mechanism, Ice Maker		Appelez-nous	-
18	W11772394		Screw   (Replaces: 400021-1)			Immediately	$ 10.94
19	52307-2		Arm, Sensor		Appelez-nous	-
20	65319-1		Shaft, Drive		Appelez-nous	-
21	58706-1		Ring, Retainer		Appelez-nous	-
22	65318-1		Clip, Drive Shaft				$ 23.83
23	65317-1		Spacer		Appelez-nous	-
24	53748-1		Spout, Fill		Appelez-nous	-
24	405009-103		Screw		Appelez-nous	-
25	66447-1		Bin, Ice		Appelez-nous	-
26	66205-1		Ice Disp Front		Appelez-nous	-
26	WP1163283		Screw   (Replaces: 405022-103)				$ 6.47
27	65707-11		Insert		Appelez-nous	-
28	63017-1		Ring, Drive		Appelez-nous	-
29	WP63052-2		Yoke, Ice Dispenser   (Replaces: 63052-1)			Immediately	$ 62.02
30	63084-1		Hub, Reinforcing		Appelez-nous	-
31	63071-1		Pin, Auger		Appelez-nous	-
32	66435-1		Auger		Appelez-nous	-
33	66448-1		Impeller, Auger		Appelez-nous	-
34	66098-1		Nut, Auger		Appelez-nous	-
35	400015-12		Screw		Appelez-nous	-
35	56142-1		Nut, Motor Box		Appelez-nous	-
35	65265-1		Box,auger Motor		Appelez-nous	-
36	WP488234		Screw   (Replaces: 406026-103)				$ 6.07
36	12001773		Im Motor   (Replaces: 64143-3)				$ 312.61
37	405022-1		Screw		Appelez-nous	-
37	63000-5		Dispenser, Water		Appelez-nous	-
37	RA95059-1		Insulation Kit		Appelez-nous	-
38	64937-1		Heater, Fountain		Appelez-nous	-
39	66620-1		Actuator Arm (ice)				$ 37.54
40	55602-21		Tubing, Arm Pins		Appelez-nous	-
41	66618-1		Actuator Arm (water)				$ 41.04
42	63066-1		Pad, Arm				$ 26.40
42	66616-1		Cover		Appelez-nous	-
43	63035-2		Clip		Appelez-nous	-
44	63306-1		Spring		Appelez-nous	-
44	402015-103		Screw, Ice Door		Appelez-nous	-
45	65212-1		Motor, Inertia		Appelez-nous	-
46	RA43825-1		Door Assy., Ice		Appelez-nous	-
47	63428-1		Spring, Ice Door		Appelez-nous	-
48	63053-1		Pin, Ice Door		Appelez-nous	-
49	63014-1		Bracket, Ice Door		Appelez-nous	-
50	63089-1		Insulation		Appelez-nous	-
50	66007-1		Boot, Ice Door		Appelez-nous	-
51	63059-1		Wire Harness		Appelez-nous	-
51	65291-1		Wire Harness		Appelez-nous	-
51	65290-1		Wire Harness		Appelez-nous	-
51	63372-1		Wire Harness		Appelez-nous	-
52	63039-1		Socket, Light		Appelez-nous	-
53	65176-1		Bushing, Plunger Guide		Appelez-nous	-
54	W10857122		Bulb, Light   (Replaces: 63179-1)				$ 12.45
55	59808-1		Grommet, Water Entry		Appelez-nous	-
55	23197-7		Clamp		Appelez-nous	-
55	WP67006908		Screw   (Replaces: 400022-1)			Immediately	$ 7.16
55	63013-2		Bracket, Switch		Appelez-nous	-
55	27116-4		Wire Nut		Appelez-nous	-
56	65333-1		Insulator, Switch		Appelez-nous	-
57	63040-1		Switch, Light		Appelez-nous	-
58	55440-2		Switch, Ice & Water				$ 11.94
59	65002-15		Tubing, Water Line		Appelez-nous	-
60	9602-9		Clamp, Tubing		Appelez-nous	-
61	W10833902		Clamp, Tubing   (Replaces: 53516-8)				$ 9.89
62	63038-2		Water Line		Appelez-nous	-
63	63466-1		Barrier Plate		Appelez-nous	-
64	63025-3		Grille		Appelez-nous	-
65	60333-1		Clamp, Spring		Appelez-nous	-
65	60333-2		Clamp, Spring		Appelez-nous	-
NI	ES18809		Switch, Auger Shut Off   (Replaces: 65177-1)				$ 11.30
NI	65185-1		Strike, Auger Box		Appelez-nous	-
NI	405072-1		Screw		Appelez-nous	-
NI	65132-1		Control, Auger Motor		Appelez-nous	-
NI	65143-1		Insulation, Motor Control		Appelez-nous	-
NI	65285-1		Switch, 2 Circuit		Appelez-nous	-
NI	405022-1		Screw		Appelez-nous	-
NI	406043-1		Screw		Appelez-nous	-
NI	65286-2		Bracket		Appelez-nous	-
NI	430002-1		Nut		Appelez-nous	-
NI	53914-2		Stud		Appelez-nous	-
