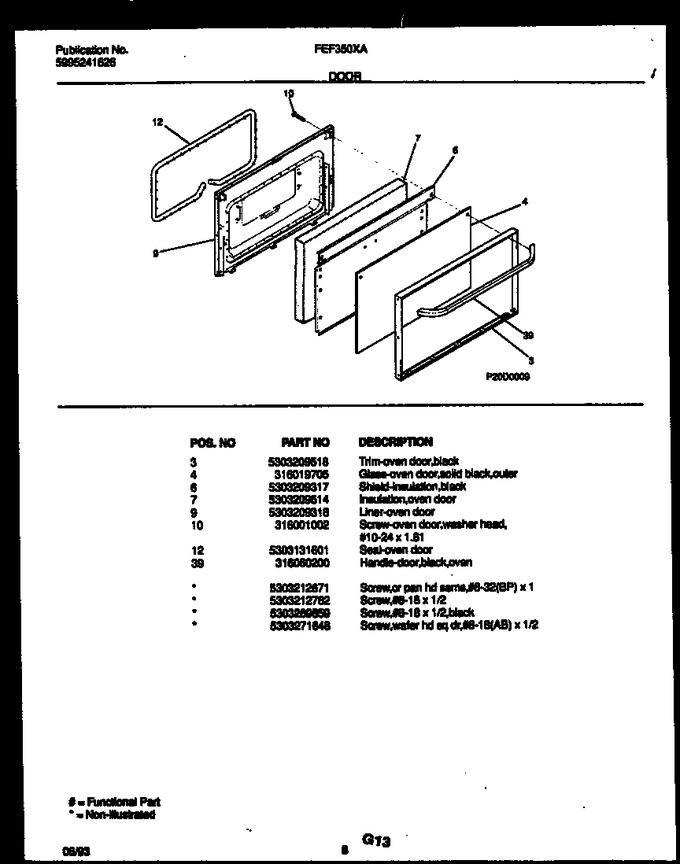

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303209518 | Trim-oven Door (black) |
|
- | |||||
| 4 | 316019705 | Glass-oven Door, Solid Black, Outer |
|
- | |||||
| 6 | 5303209317 | Shield-insulation, Black |
|
- | |||||
| 7 | 5303209514 | Insulation-oven Door |
|
- | |||||
| 9 | 5303209318 | Liner-oven Door |
|
- | |||||
| 10 | 316001002 | Screw-oven Door, Washer Head, 10-24 X 1.81 |
|
$ 14.89 | |||||
| 12 | 5303131601 | Seal-oven Door |
|
$ 374.63 | |||||
| 39 | 5304529996 | Handle-door, Black, Oven (Replaces: 316060200) |
|
$ 156.11 | |||||
| *83422 | 5303269859 | Screw 8-18 X 1/2 Black |
|
- | |||||
| *83422 | 5303212671 | Screw, Cr Pan Hd Sems, 8, 32(bp) X 1 |
|
- | |||||
| *83422 | 5303212762 | Screw,8-18 X 1/2 |
|
- | |||||
| *83423 | 5303271648 | Screw, Wafer Hd Sq Dr, 8-18(ab) X 1/2 |
|
Immediately | $ 13.46 |
