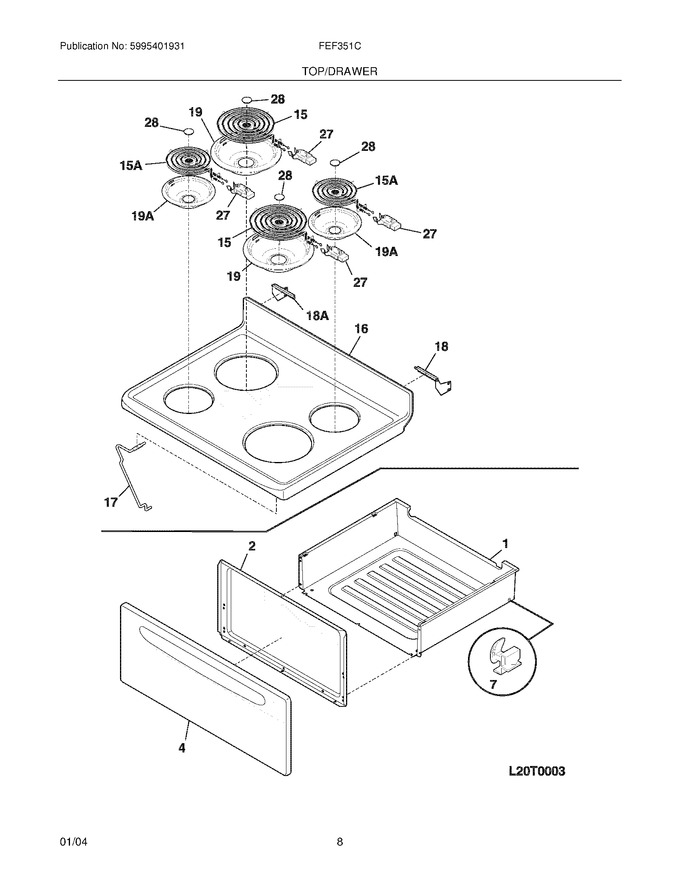

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011503		Drawer				$ 131.51
2	316231500		Liner,drawer				$ 54.40
4	316231309		Panel-drawer,bisque				$ 78.25
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	316245405		Main Top,bisque		Appelez-nous	-
17	316066900		Rod-maintop Support				$ 66.31
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
19	316048413		Pan-surface Element, Large/8 Inch   (Replaces: 5303935054)			Immediately	$ 9.85
28	3017801		Medallion, Stainless Steel, Surf Elem		Appelez-nous	-
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
18A	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
19A	L304430992		Pan-surface Element, Small/6 Inch   (Replaces: 5303935057)				$ 9.59
F15	316442301		Element,surface ,8`` ,large   (Replaces: 5303012223)			Immediately	$ 44.39
F15A	318372211		Element,surface ,6`` ,small   (Replaces: 08067762)			Immediately	$ 45.14
F27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316253524		Wiring Harness,surface Element		Appelez-nous	-
NI	316058600		Clip,surface Element ,chrome ,(4)		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
